Електронен зумер, продължителен/пулсиращ тон 230VAC черен, Werma 111.000.68

Детайлна информация

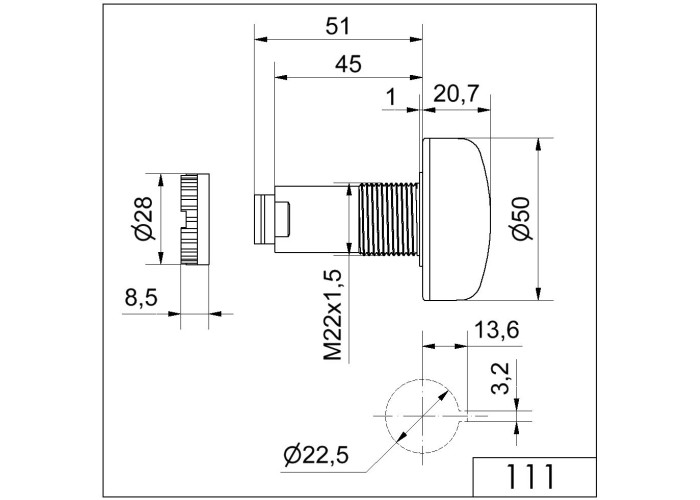

Mechanical data

Height72 mm

Diameter50 mm

MaterialsPCPC/ABS

Housing colourBlack

Protection categoryIP65

ConnectionScrew terminals

cross-sectional area maximum1,50mm² / 16AWG

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Weight with packaging51 g

Product weight38 g

Electrical data

Operating voltage230V

Operating voltage typeAC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage230 VAC

Rated operational current20 mA

Rated inrush current < 500mA

Protection classProtection class 2

Pollution degree3In the connection area: 2

Overvoltage categoryII

Isolation voltageUi = 250V; Uimp = 2.500V

Acoustic data

Volume (max) at 1m distance80,0 dB (A)

Acoustic signal imageContinuous tonePulse tone

Audio frequency2800 Hz

Acoustic service life5,000 h minimum

Approval data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with UKCA (Importer)Yes (WERMA (UK) Ltd.)

Conforms with AS-INo

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with VdSNo
