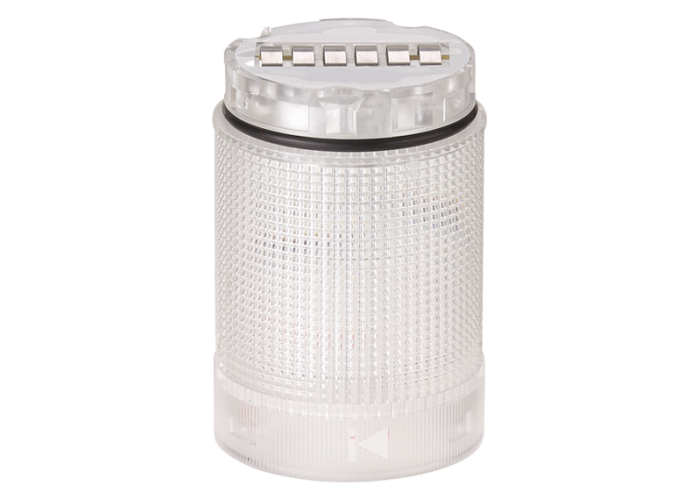

Основа с клемореди IO-Link 24VDC прозрачна, Werma 631.400.55

Детайлна информация

Mechanical Data

Height59.000000

Diameter40.000000

MaterialsPC

Dome colourClear

Weight with packaging50.000

Protection categoryIP66; IP69K

ConnectionIO-LINK; Push-in terminal

Product weight35.000

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Working temperature maximum+60°C

cross-sectional area minimum0,25mm² / 24AWG

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current6.000000

Rated inrush current400 mA

Protection classProtection class 3

Pollution degree3

Request to external PSUSELV/PELV

connectivityIO-Link

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableNo

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No
