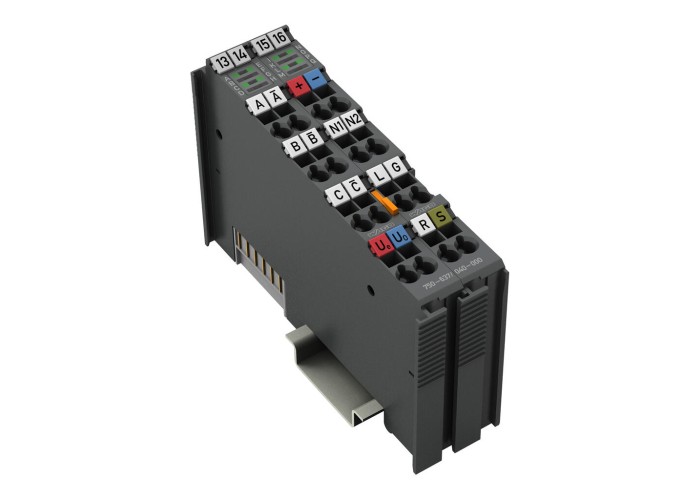

Интерфейс на инкрементален енкодер, 5 VDC, Диференциален вход, 32 bits, Extreme, Wago 750-637/040-000

Детайлна информация

Counter depth32 Bit

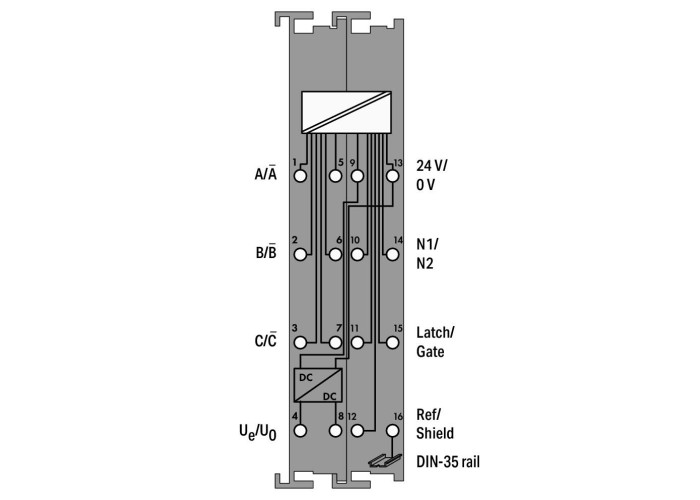

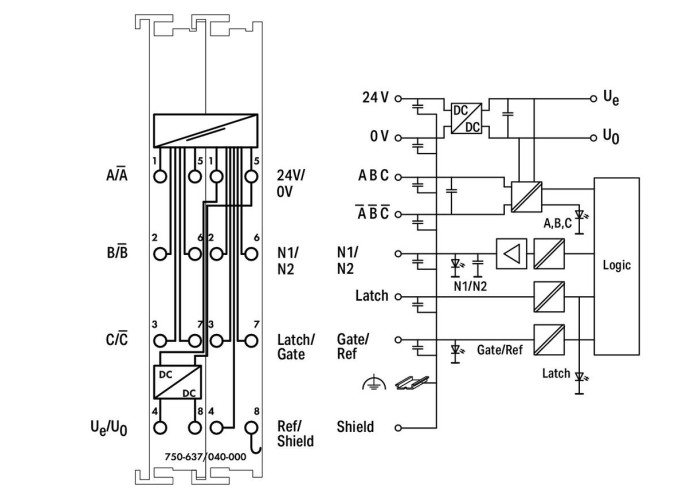

Encoder connectionA; /A; B; /B; C; /C (RS-422 входове)

Zero impulse (latch)32 Bit

Quadrature decoder4x evaluation

Input current (typ.)Latch 7 mA, Gate 7 mA, Ref. 7 mA

Output current per channel0,5 A

Output currentзащита от късо съединение

Output voltage24 VDC

Voltage range for signal (0)U ABC = RS-422; Latch, gate, ref.: -3 … +5 VDC

Voltage range for signal (1)U ABC = RS-422; Latch, gate, ref.: 15 … 30 VDC

Data width1 x 32 бита данни 2 x 8-бита управление/състояние

Limit frequency250 kHz

CommandsЧетене, настройка, активиране

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)110 mA

Current consumption, field supply (module with no external load)35 mA

Rated impulse withstand voltage1 kV

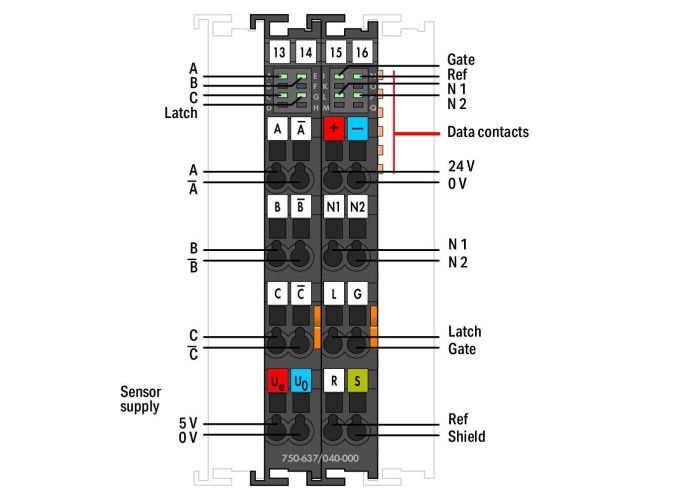

IndicatorsLED (A, C, E, G/A, C, E, G) green: A, C, B, Latch, Gate, N1, Ref, N2

Connection technology: I/O16 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeInputs/outputs

Solid conductor0,25 … 2,5 mm² / 24 … 14 AWG

Fine-stranded conductor0,25 … 2,5 mm² / 24 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width24 mm / 0.945 inches

Height100 mm / 3.937 inches

Depth67,8 mm / 2.669 inches

Depth from upper-edge of DIN-rail60,6 mm / 2.386 inches

Mounting typeDIN-35 rail

Colorтъмно сив

Housing materialPolycarbonate; polyamide 6.6

Fire load1,345 MJ

Weight98,9 g

Conformity markingCE

Ambient temperature (operation)-40 … +70 °C

Ambient temperature (installation)-20 … +70 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitudeбез занижаване на работните характеристики на температурата: 0 … 2000 m; със занижаване на работните характеристики на температурата: 2000 … 5000 m (0,5 К/100 m); 5000 m (макс.)

Mounting positionHorizontal left, horizontal up, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Relative humidity (with condensation)Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Vibration resistanceпо IEC 60068-2-6 (ускорение: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Shock resistanceпо IEC 60068-2-27 (15g/11 ms/полусинусоидален/1000 удара; 25g/6 ms/1000 удара), EN 50155, EN 61373

EMC immunity to interferenceпо EN 61000-6-1, -2; EN 61131-2; морски приложения; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994

EMC emission of interferenceпо EN 61000-6-3, -4, EN 61131-2, EN 60255-26, морски приложения, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4066966208634

Customs tariff number85389099990

UNSPSC32151705

ETIM 9.0EC001601

ETIM 10.0EC001601

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 7439-92-1 79-94-7

REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol Diboron trioxide Lead Lead monoxide Perfluorobutane sulfonic acid (PFBS) and its salts

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II
