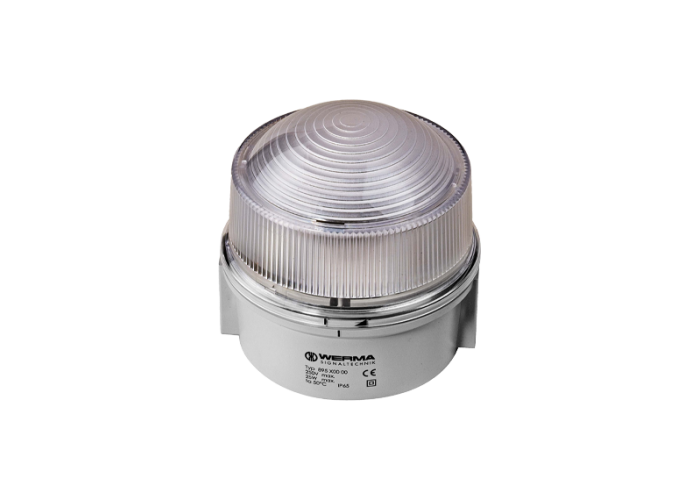

Лампа с пост. светлина 12-230VAC/DC прозрачно, Werma 895.400.00

Детайлна информация

Mechanical Data

Height148.000000

Diameter149.000000

MaterialsPC; PC/ABS

Dome colourClear

Housing colourGrey

Weight with packaging491,00 g

Protection categoryIP65

ConnectionInsulation-displacement contac

Product weight419,00 g

Tension reliefPresent (conforms to VDE)

Type of fixingBase mounting; Wall mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryScrewed cable gland

Working temperature maximum+50°C

Cable entry minimumd = 6 mm

Cable entry maximumd = 12 mm

Electrical Data

Operating voltage12-230V

Operating voltage typeAC/DC

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3

Optical Data

Service life opticaldepends on bulb

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
