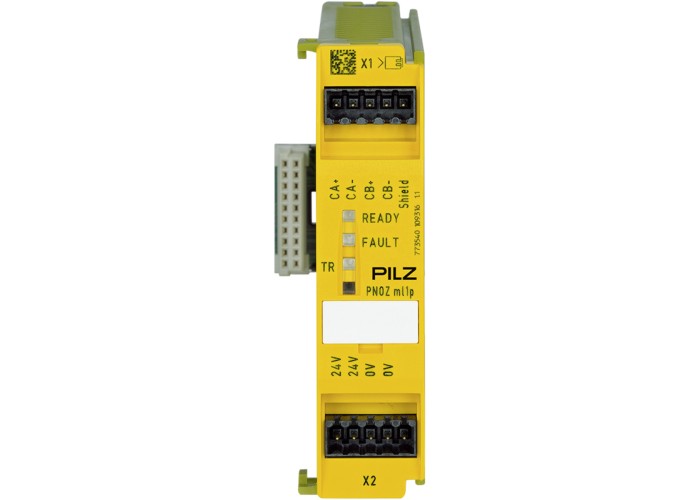

Разширителен модул PNOZ ml1p safe link 24VDC, 773540

Детайлна информация

Type

Electrical data

Purpose of U1Module supply

Supply voltage (V)24  V

Type of supply voltage U1DC

Power consumption DC5W

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryIII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions35 x 7.5 EN 50022

Housing material lower sectionPPO UL 94 V0

Housing material front plateABS UL 94 V0

Connection terminalScrew terminalSpring-loaded terminal

Flex. cond. c/s AWG info24 - 16 AWG

Height dimension94mm

Width dimension22.5mm

Depth dimension121mm

Net weight129g

Gross weight148g
