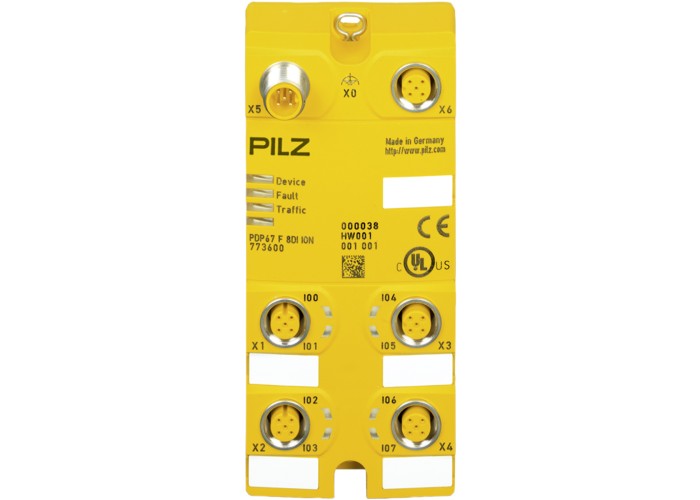

Децентрализиран модул PDP67 F 8DI ION, 773600

Детайлна информация

Type

Electrical data

Purpose of U1supply

Supply voltage (V)24  V

Type of supply voltage U1DC

Power consumption DC1.2W

Terminal V ind. loads off-45 V

Permitted loadsResistiveInductiveCapacitive

Inputs

Number of inputs8

Signal level at input at 0-3 - +5 VDC

DC voltage at input24 V

U input to EN 61131-2 Type 124 V DC

Input type to EN 61131-21, 3

Potential isolation inputNo

Semiconductor outputs

Function of S/C outputTest pulse output24 VDC outputStandard output

DC voltage at output24 V DC

Potential isolation of S/C ONo

S/C output short circuit proofYes

Environmental data

Climatic suitability to ...EN 60068-2-78

Ambient temperature standardEN 60068-2-14

Ambient temperature-30 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Briefly

Perm. operating height ASL2000 m

EMC to standard ...EN 61000-4-8EN 61000-4-4EN 61000-4-5EN 61000-4-6EN 61000-4-2EN 61000-4-3

Vibration to standard ...EN 60068-2-6

Acc. shock to standard115g

Acc. shock to standard2

Clearance & creepage dist. toIEC 60664-1

Overvoltage categoryIII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, housing

Terminal protection type

Mechanical data

Housing materialPBTValox 855

Housing material upper partValox 855

Housing material label holderPC

Connection terminalM12

Terminal stylescrew interlocked

Height dimension133mm

Width dimension60mm

Depth dimension30mm

Net weight250g

Gross weight270g
