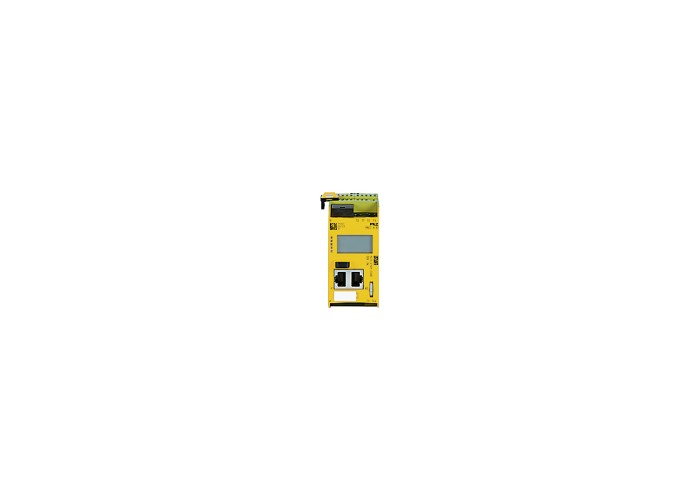

Контролер PNOZ m B1, 772101

Детайлна информация

Type

Electrical data

Purpose of U1System supply

Supply voltage (V)24  V

Type of supply voltage U1DC

Power consumption DC18.5W

Test clock outputs

Number of test pulse outputs4

Ethernet interface

Ethernet IP address169.254.60.1

Connector type ETHERNET int.RJ45

Ethernet transmission rate10 MBit/s100 MBit/s

CANopen interface

Number of Ethernet interfaces2

Environmental data

Ambient temperature standardEN 60068-2-14

Ambient temperature0 - 60°C

Storage temperature standardEN 60068-2-1/-2

Climatic suitability standardEN 60068-2-30EN 60068-2-78

Humidity rating93 % r. h. at 40 °C

Condensation permitted?Not permitted

Perm. operating height ASL2000 m

EMC to standard ...EN 61131-2

Vibration to standard ...EN 60068-2-6

Clearance & creepage dist. toEN 61131-2

Overvoltage categoryII

Pollution degree clear.&creep.2

Protection type standardEN 60529

Protection type, mounting

Protection type, housing

Terminal protection type

Mechanical data

Mounting positionhorizontal on top hat rail

DIN-rail dimensions

Housing material lower sectionPC

Housing material front platePC

Housing material upper partPC

Connection terminalScrew terminalCage clamp terminal

Terminal styleplug-in

Flex. cond. c/s AWG info24 - 12 AWG

Height dimension101.4mm

Width dimension45mm

Depth dimension120.2mm

Net weight209g

Gross weight219g
