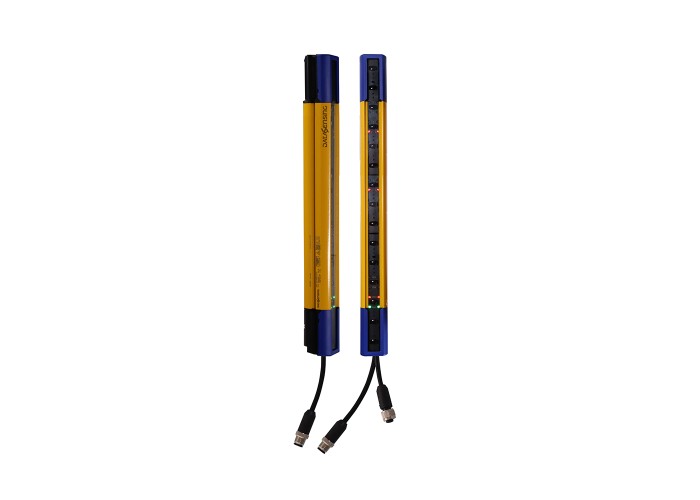

Datasensing SH4-30-0900-S-8 - SH4 STANDARD Res=30 mm h=900 mm 8 poles edm man/auto

Детайлна информация

• Hand protection (30 mm)
• Improved operating range: 20m (hand)
• Basic functions: alignment, automatic restart
• Standard functions: manual restart, EDM
• Extended monitored height up to 2250 mm
• Compact profile (35 x 40 mm), common to all SH4 line
• Installation eased by LEDs indications of beam intensity
• Optical synchronization with 2 beams
• IP67 Protection
• -30 … +55 °C Operating temperature
• Zero dead zone
• Complete couple and angular bracket included in the package
• Pigtails with M12 connectors with standard not shielded cables

Detection properties

Nominal sensing distance0.2 … 20 m

Resolution30 mm

controlled height900 mm

number of rays36

Effective Aperture Angle≤ ±2.5°

Application

Function PrincipleEmitter + Receiver

Available functionsManual/Automatic Restart, EDM

DescriptionCompact no-dead-zone STANDARD

FunctionsFinger protection res. 30 mm

Safety parameters

TypeType 4 safety light curtain (A/M)

SIL3

SILCL3

PLe

MTTFd43 years

SFF99,50%

Outputs

Output type2 x PNP-NO (OSSD safety output) with EDM

Response time10 ms

Electrical data

Operating Voltage24 Vdc ± 20%

Load current≤ 250mA each output

EmissionInfrared LED (850 nm wavelength)

Interference to external lightAccording to IEC 61496-2

Power Consumption - Receiver≤ 4W (no load)

Power Consumption - Emitter≤ 3,5W

Capacitive Load≤ 1µF

Cabel Length (Power Supply/Output)≤ 30m

Mechanical data

MaterialPainted aluminum / MAKROLON AR 7099 Clear PC / PBT

ConnectionsM12-5 poles pigtail (emitter) M12-8 poles pigtail (receiver)

Storage temperature-30 …+70 °C

Vibrations10 mm / 3 g, 5 … 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3)

Shocks25 g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Test/Approvals

ApprovalsCE, cULus, TÜV, UKCA

EMC compatibilityAccording to 2014/30/EU Directive

Shocks and vibrations10 mm / 3g, 5 to 150 Hz frequency (EN 60068-2-6 / Class 3M7 IEC TR 60721-4-3); 25g x 6 ms x 600 (EN 60068-2-27 / Class 3M7 IEC TR 60721-4-3)

Accessories

Supplied AccessoriesStandard "L" Mounting Brackets: 4 pcs kit

Accessories to be ordered separatelyTop-bottom rotating mounting bracket ST-K4ROT-SH

Generical Data

Integrated aimerIntegrated laser pointer

Dimensions35x40x909 mm

Operating Temperature-30…+55°C

Humidity15 … 95 % (no condensation)

Mechanical ProtectionIP65, IP 67 (EN 60529)
