Инстаационен зумер, пулсиращ тон 12/24VAC/DC, Werma 107.010.70

Детайлна информация

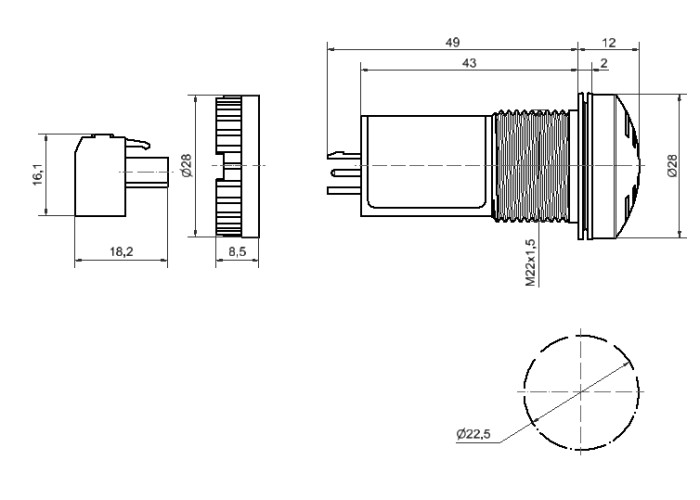

Mechanical data

Height61 mm

Diameter28 mm

MaterialsPA-GF

Housing colourBlack

Protection categoryIP65

ConnectionScrew terminals

cross-sectional area maximum1,50mm² / 16AWG

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Weight with packaging32 g

Product weight20 g

Electrical data

Operating voltage12V24V

Operating voltage typeAC/DC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current8 mA

Rated inrush current30 mA

Protection classProtection class 2

Pollution degree3In the connection area: 2

Acoustic data

Volume (max) at 1m distance60,0 dB (A)

Volume (max) at 10cm distance80,0 dB (A)

Acoustic signal imagePulse tone

Number of tones1 tone

Audio frequency2400 Hz

Acoustic service life5,000 h minimum

Approval data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

UL Type RatingType 4X

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with UKCA (Importer)Yes (WERMA (UK) Ltd.)

Conforms with AS-INo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with VdSNo

MTTF-value [years]3129
