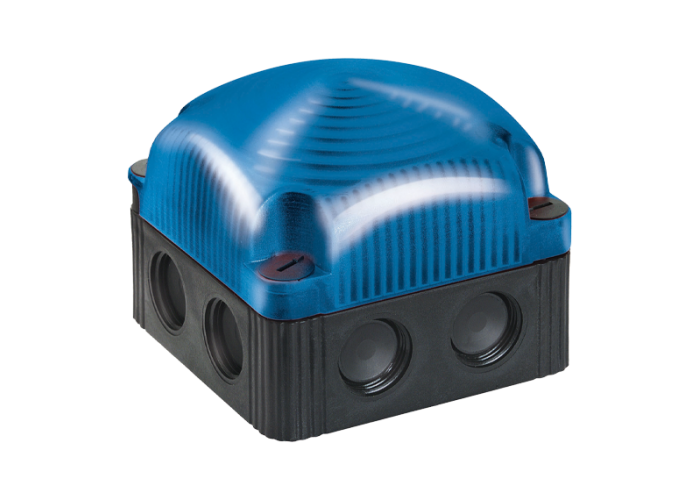

LED лампа с постоянна светлина BWM 115-230VAC синя, Werma 853.500.60

Детайлна информация

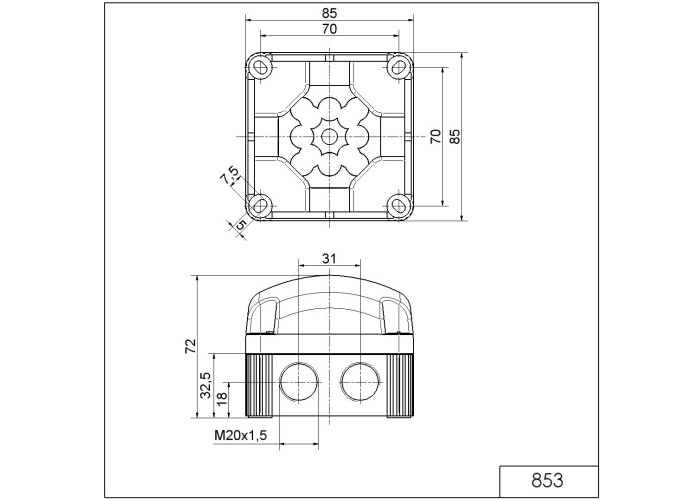

Mechanical Data

Height72.000000

Length85.000000

Width85.000000

MaterialsPC; PP-GF

Dome colourBlue

Housing colourBlack

Weight with packaging163.000

Protection categoryIP66; IP67

ConnectionScrew terminals

Product weight132.000

Type of fixingBase mounting; Wall mounting

Working temperature minimum-25°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm; d = 6 mm

Cable entry maximumd = 12 mm; d = 9 mm

Electrical Data

Operating voltage115-230V

Operating voltage typeAC

Operating voltage frequency50Hz at 230V; 60Hz at 115V

Operating voltage tolerance+/- 10%

Rated operational voltage230 VAC

Rated operational current40.000000

Rated inrush current1.000 mA

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCYes

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
