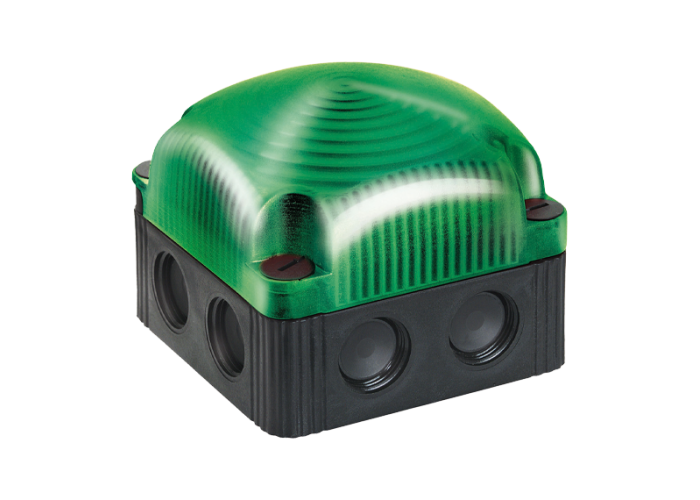

LED двойно проблясваща светлина BWM 24VDC зелена, Werma 853.210.55

Детайлна информация

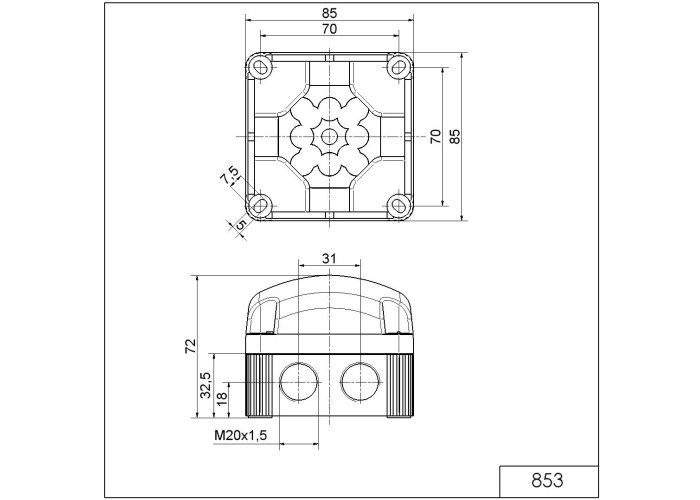

Mechanical Data

Height72.000000

Length85.000000

Width85.000000

MaterialsPC; PP-GF

Dome colourGreen

Housing colourBlack

Weight with packaging175.000

Protection categoryIP66; IP67

ConnectionScrew terminals

Product weight145.000

Type of fixingBase mounting; Wall mounting

Working temperature minimum-25°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm; d = 6 mm

Cable entry maximumd = 12 mm; d = 9 mm

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current80.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageDouble flash

Flash frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
