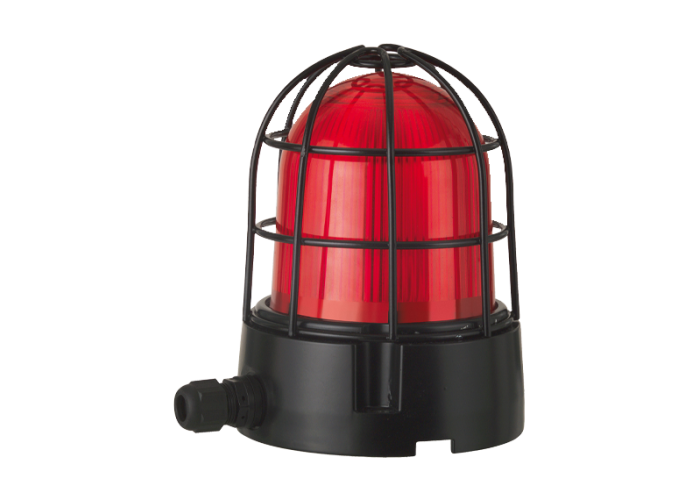

LED лампа въртяща светлина BM 24VDC червена, Werma 839.120.55

Детайлна информация

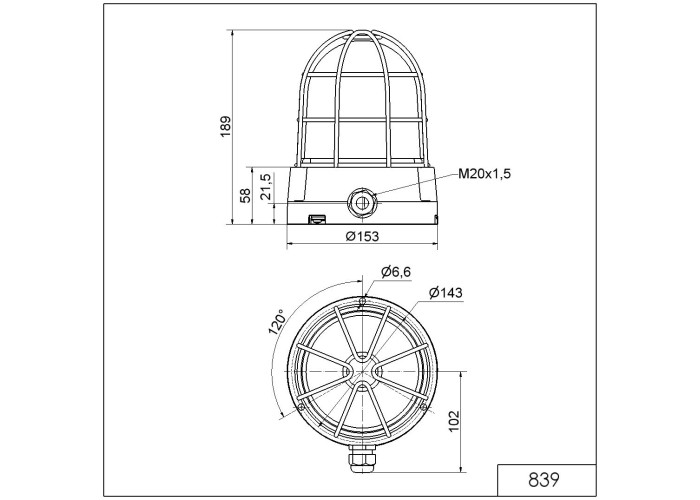

Mechanical Data

Height189.000000

Diameter153.000000

MaterialsAluminium; PC

Dome colourRed

Housing colourBlack

Weight with packaging1558.000

Protection categoryIP66; IP67

ConnectionScrew terminals

Product weight1264.000

Tension reliefPresent (conforms to VDE)

Type of fixingBase mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryScrewed cable gland

Working temperature maximum+50°C

Cable entry minimumd = 6 mm

Cable entry maximumd = 13 mm

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current150.000000

Rated inrush current500 mA

Protection classProtection class 1

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageRevolving

Service life optical50,000 h maximum

Rotation speed (rpm)180.000000

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
