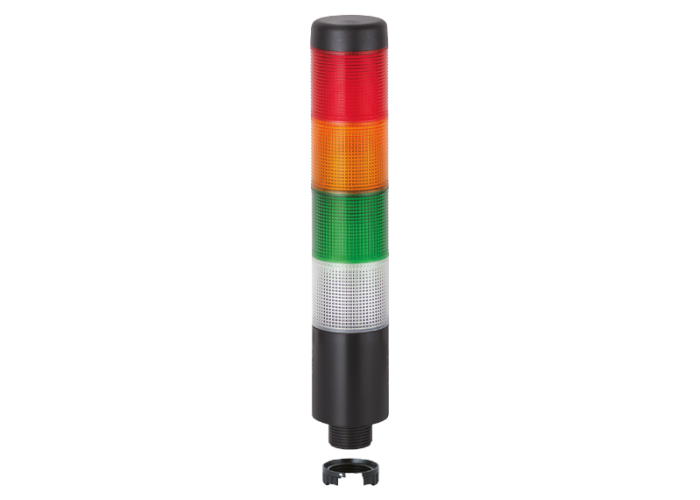

K37 предварително асемблирана колона с кабел EM 24VAC/DC бяло/зелено/жълто/червено, Werma 698.140.75

Детайлна информация

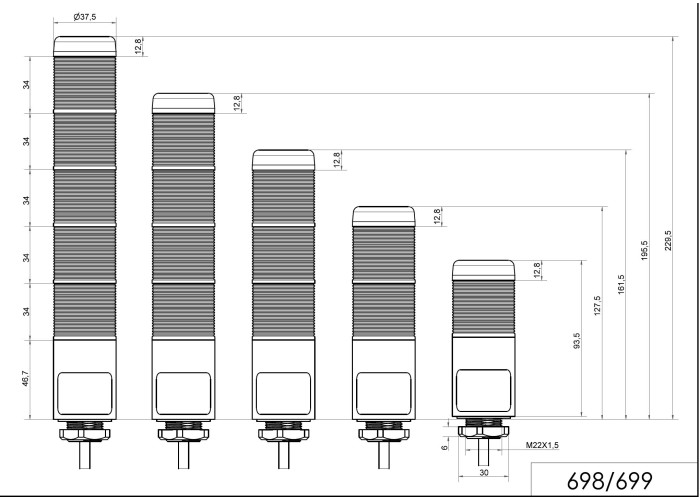

Mechanical Data

Cable length2000.000000

Height209.000000

Diameter38.000000

MaterialsPC

Dome colourClear; Green; Red; Yellow

Housing colourBlack

Weight with packaging224.000

Protection categoryIP65

ConnectionCable

Product weight190.000

Tension reliefPull-out protection

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

cross-sectional area maximum0,34mm² / 22AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm

Cable entry maximumd = 9 mm

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current135.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3; In the connection area: 2

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
