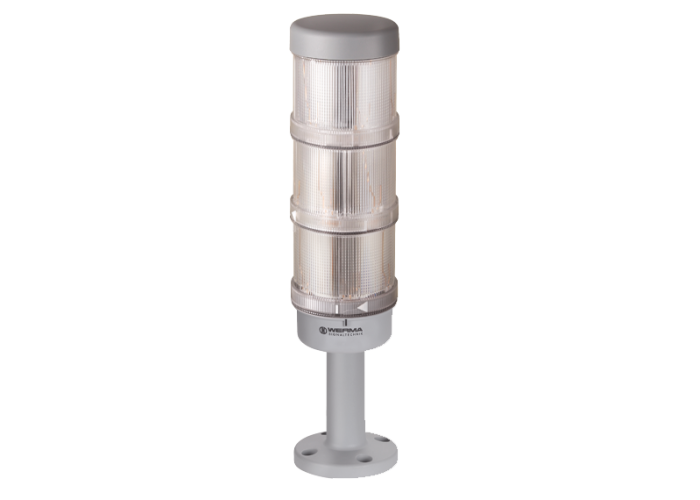

Сигнална колона KS72 DeSIGN BM 24VAC/DC зелено/жълто/червено, Werma 649.001.02

Детайлна информация

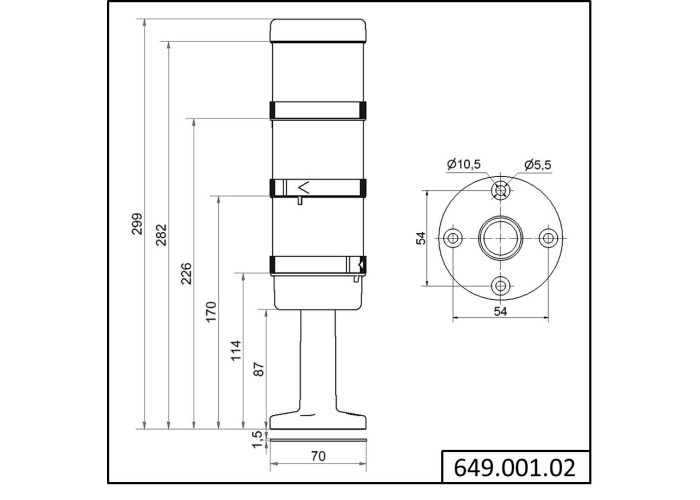

Mechanical Data

Height299.000000

Diameter70.000000

MaterialsPA-GF; PC

Dome colourClear

Housing colourSilver

Weight with packaging411.000

Protection categoryIP65

ConnectionSpring-type terminal

Product weight355.000

Tension reliefNot present

Type of fixingBase mounting

Working temperature minimum-20°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryThrough hole

Working temperature maximum+50°C

cross-sectional area minimum0,25mm² / 24AWG

Cable entry maximumd = 11 mm

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current240.000000

Rated inrush current< 500mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imagePermanent

Blink frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CENo

Conforms with RoHS directiveNo

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)No

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
