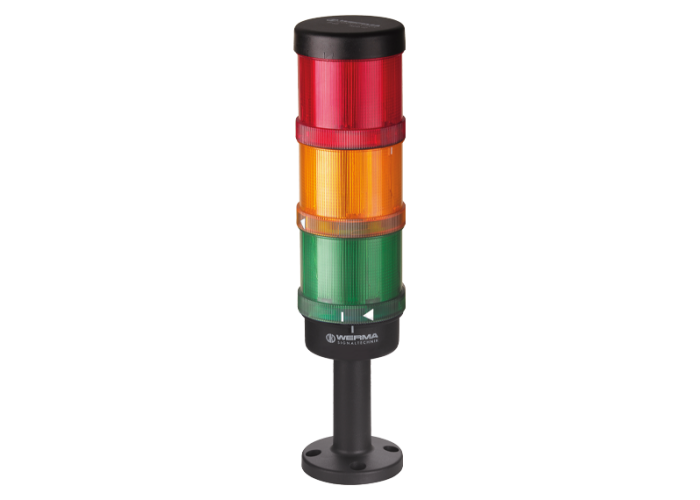

CO2 светофар 800ppm/CO2-Ampel 800ppm, Werma 649.000.14

Детайлна информация

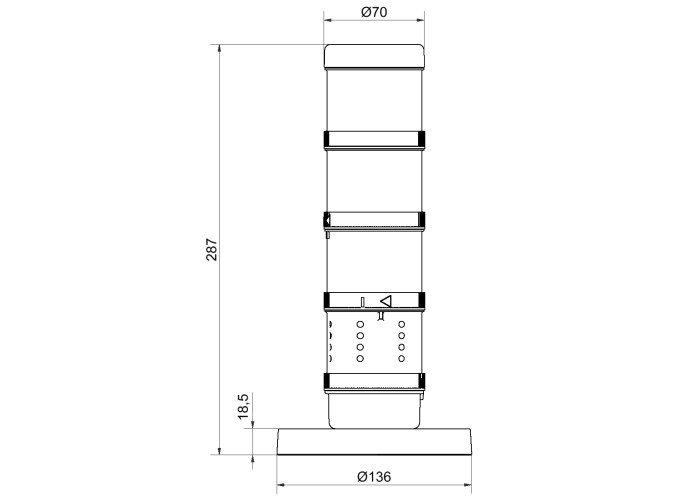

Mechanical Data

Cable length1500,00 mm

Length287,00 mm

Diameter70.000000

MaterialsPA; PC; PC/ABS

Dome colourGreen; Red; Yellow

Housing colourBlack

Weight with packaging843,00 g

Protection categoryIP20

ConnectionPlug-in connection

Product weight610,00 g

Tension reliefNot present

Type of fixingBase mounting

Working temperature minimum+10°C

Working temperature maximum+35°C

Electrical Data

Operating voltage230V

Operating voltage typeAC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 20%

Rated operational voltage230 VAC

Rated operational current40.000000

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree2

Optical Data

Light sourceLED

Optical signal imageBlink; Permanent

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with CCC-ExNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableNo

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)No

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
