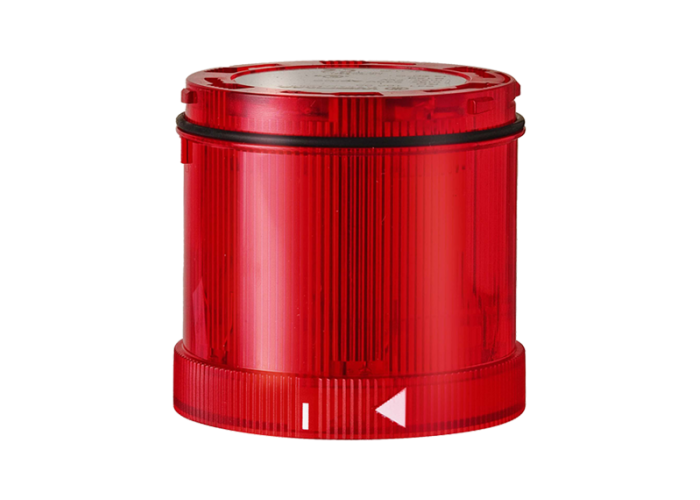

Светл. елемент с проблясваща светлина 12VDC червен, Werma 643.100.54

Детайлна информация

Mechanical Data

Height66.000000

Diameter70.000000

MaterialsPC

Dome colourRed

Weight with packaging88.000

Protection categoryIP65

Product weight76.000

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage12V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage12 VDC

Rated operational current195.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceXenon

Optical signal imageFlash

Flash frequency1 Hz

Service life optical4 million flashes minimum

Flash output2 J

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
