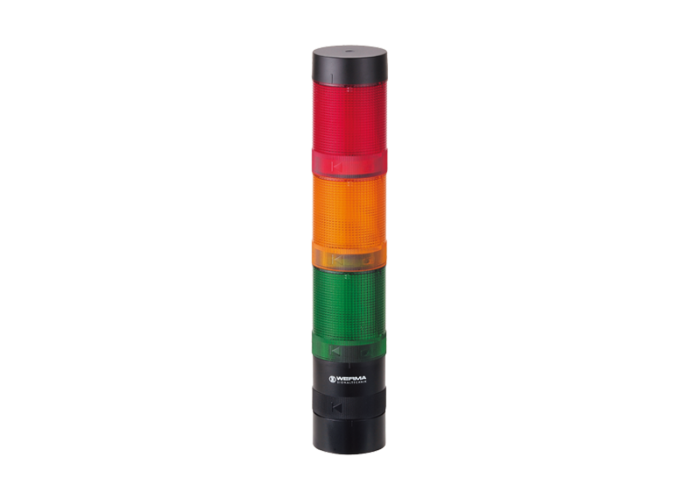

Сигнална колона KS40 BWM 24VAC/DC зелено/жълто/червено, Werma 639.300.01

Детайлна информация

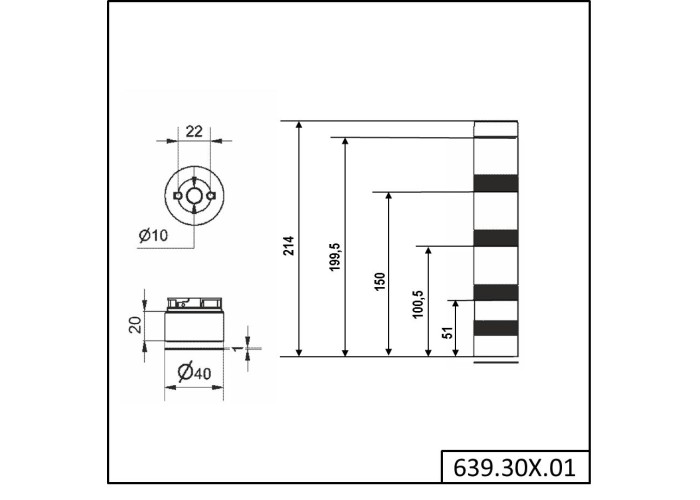

Mechanical Data

Height215.000000

Diameter40.000000

MaterialsPC

Dome colourGreen; Red; Yellow

Housing colourBlack

Weight with packaging210.000

Protection categoryIP66; IP69K

ConnectionPush-in terminal

Product weight129.000

Tension reliefNot present

Type of fixingBase mounting; Wall mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryThrough hole

Working temperature maximum+60°C

cross-sectional area minimum0,25mm² / 24AWG

Cable entry maximumd = 9 mm

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current40.000000

Rated inrush current500 mA

Protection classProtection class 3

Pollution degree3

Request to external PSUSELV/PELV

Optical Data

Light sourceLED

Optical signal imageBlink; Permanent

Blink frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CENo

Conforms with RoHS directiveNo

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
