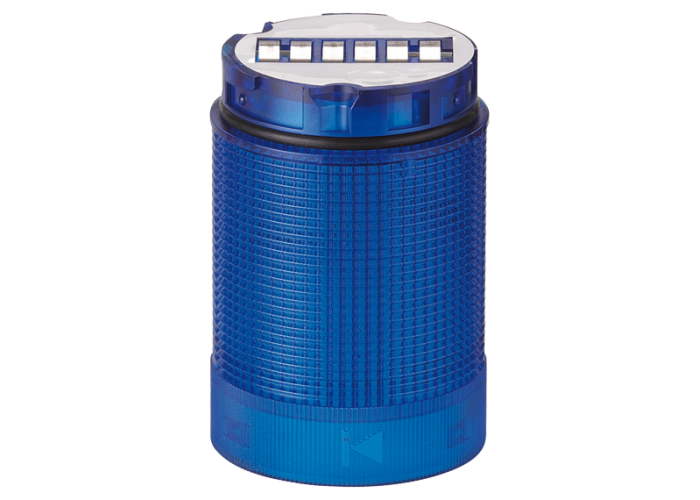

Светл. елемент TwinFLASH Classic, проблясваща/EVS 24VDC син, Werma 634.520.55

Детайлна информация

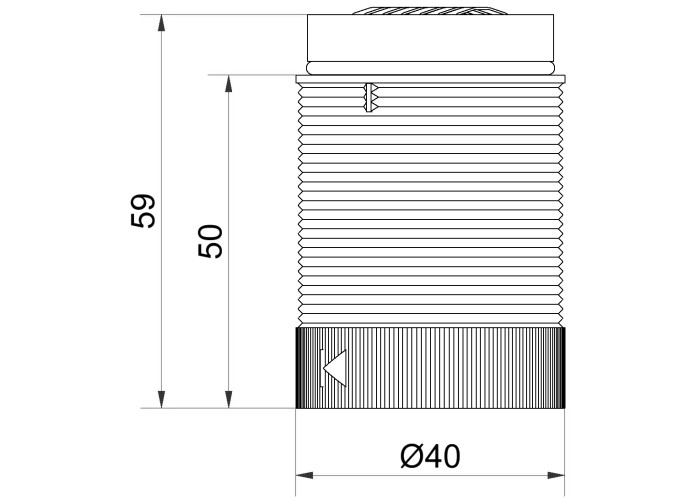

Mechanical Data

Height59.000000

Diameter40.000000

MaterialsPC

Dome colourBlue

Weight with packaging39.000

Protection categoryIP66; IP69K

Product weight29.000

Working temperature minimum-30°C

Working temperature maximum+60°C

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current65.000000

Rated inrush current500 mA

Protection classProtection class 3

Pollution degree3

Request to external PSUSELV/PELV

Optical Data

Light sourceLED

Optical signal imageEVS; Flash; TwinFlash

Flash frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No
