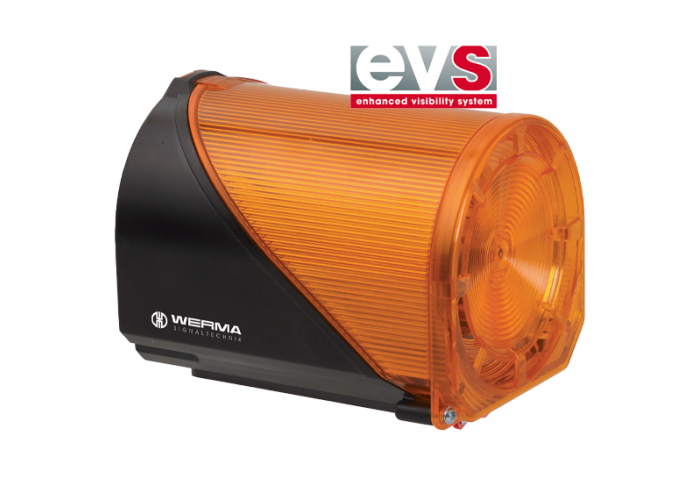

LED лампа с EVS светл. Ефект, многотонална сирена, BWM 32 тона, 24VAC/DC, Werma 444.310.75

Детайлна информация

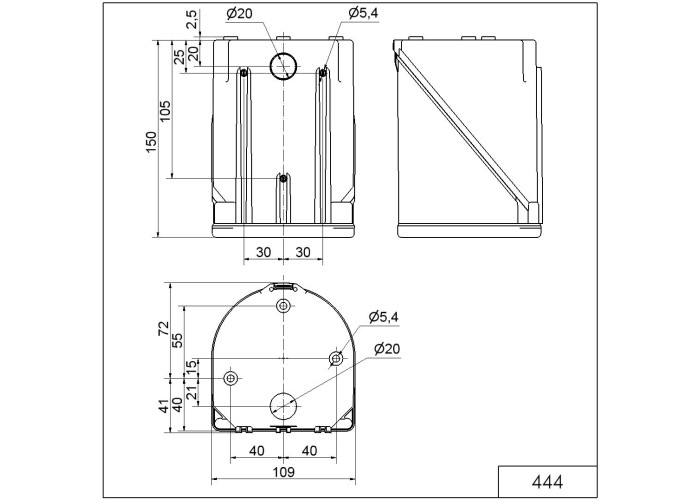

Mechanical Data

Height150.000000

Length112.000000

Width109.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourBlack

Weight with packaging393,00 g

Protection categoryIP65

ConnectionScrew terminals

Product weight323,00 g

Type of fixingBase mounting; Wall mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm

Cable entry maximumd = 13 mm

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current260.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageEVS

Flash frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

Acustical

Volume (max) at 1m distance114,0 dB (A)

Acoustic signal imageMulti-tone

Acoustic service life5,000 h minimum

Number of tones32 tone
