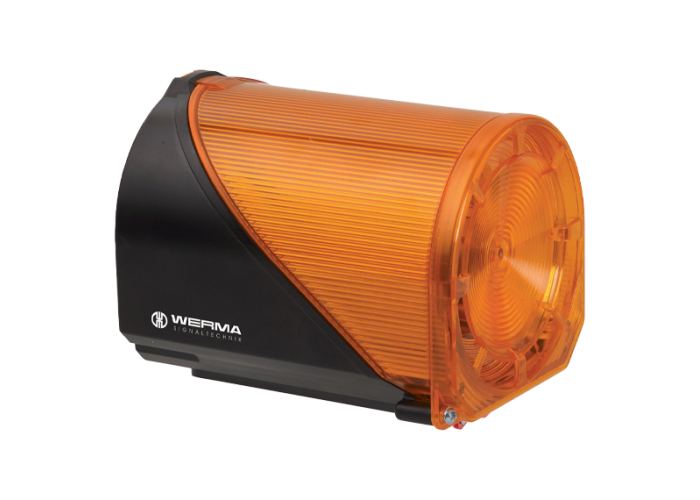

LED лампа с проблясваща светлина и сирена 32-тонална 24VAC/DC жълта, Werma 444.300.75

Детайлна информация

Mechanical Data

Height150.000000

Length112.000000

Width109.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourBlack

Protection categoryIP65

ConnectionScrew terminals

Type of fixingBase mounting; Wall mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm

Weight with packaging392,00 g

Cable entry maximumd = 13 mm

Product weight322,00 g

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current260.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageFlash

Flash frequency1 Hz

Flash output2 J

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with AS-INo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with VdSNo

MTTF-value [years]983.000000

Conforms with TÜVNo

Audible data

Acoustic service life5,000 h minimum

Volume (max) at 1m distance114,0 dB (A)

Acoustic signal imageMulti-tone

Number of tones32 tone
