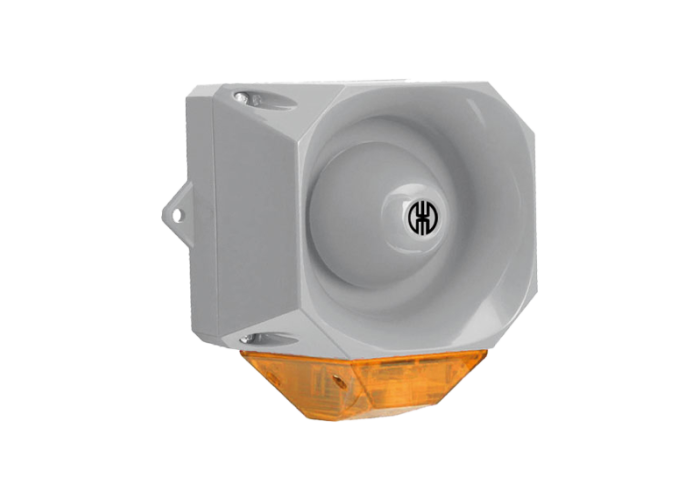

Лампа с проблясваща светлина и сирена WM 32 тона, 9-60VDC сива/жълта, Werma 441.130.55

Детайлна информация

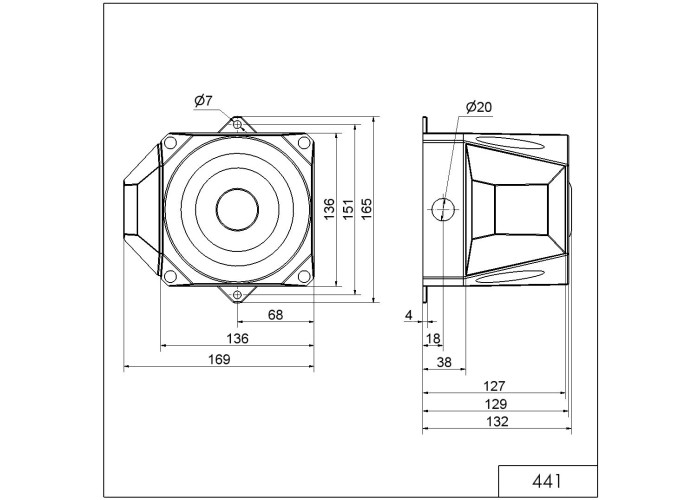

Mechanical Data

Height132.000000

Length165.000000

Width169.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourGrey

Weight with packaging700.000

Protection categoryIP66

ConnectionScrew terminals

Product weight610,00 g

Tension reliefPresent (conforms to VDE)

Type of fixingWall mounting

Working temperature minimum-25°C

cross-sectional area maximum2,50mm² / 14AWG

Cable entryScrewed cable gland

Working temperature maximum+70°C

cross-sectional area minimum0,25mm² / 24AWG

Cable entry minimumd = 8 mm

Cable entry maximumd = 12 mm

Electrical Data

Operating voltage9-60V

Operating voltage typeDC

Operating voltage tolerance+/- 0%

Rated operational voltage24 VDC

Rated operational current230.000000

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceXenon

Optical signal imageFlash

Flash frequency1 Hz

Service life optical50,000 h maximum

Flash output2 J

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEENo

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

Acustical

Volume (max) at 1m distance110,0 dB (A)

Acoustic signal imageMulti-tone

Acoustic service life5,000 h minimum

Number of tones32 tone
