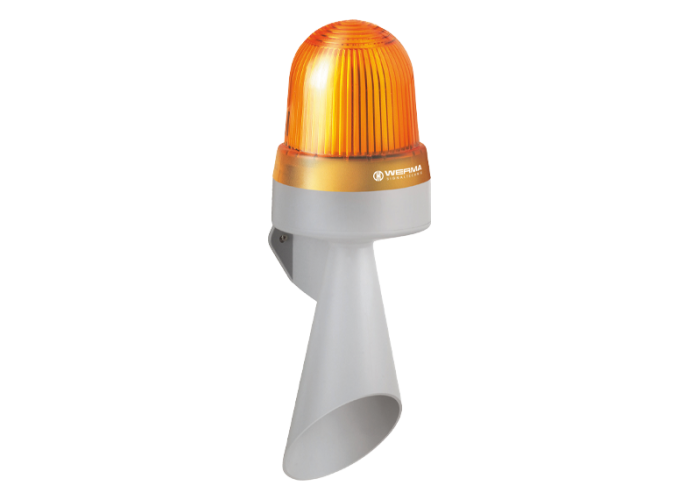

LED лампа със сирена WM продължителен тон, 10-48VAC жълта, Werma 435.300.70

Детайлна информация

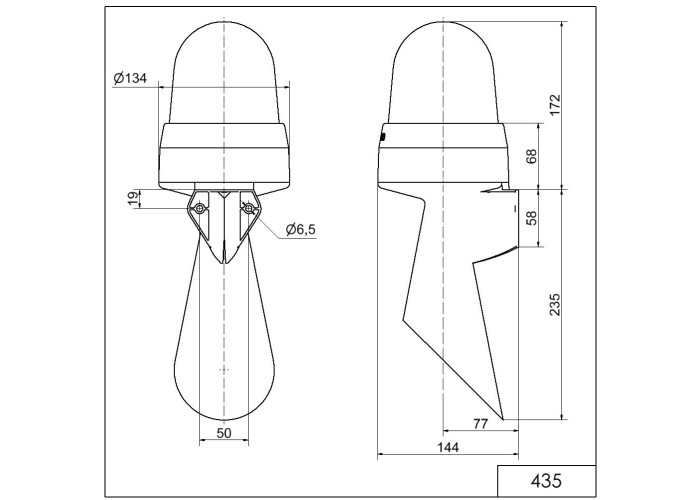

Mechanical Data

Height407.000000

Length144.000000

Diameter134.000000

Width134.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourGrey

Weight with packaging751,00 g

Protection categoryIP65

ConnectionScrew terminals

Product weight629,00 g

Tension reliefPresent (conforms to VDE)

Type of fixingWall mounting

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Cable entryMembrane grommet

Working temperature maximum+50°C

Cable entry minimumd = 1 mm

Cable entry maximumd = 13 mm

Electrical Data

Operating voltage10-48V

Operating voltage typeAC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 0%

Rated operational voltage24 VDC

Rated operational current910,00 mA

Rated inrush current650 mA

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageEVS; Flash; Permanent

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

Acustical

Volume (max) at 1m distance108,0 dB (A)

Acoustic signal imageContinuous tone

Acoustic service life5,000 h minimum

Audio frequency110.000000
