LED лампа за сигнализиране на препятствия BM 230VAC червена, Werma 280.410.68

Детайлна информация

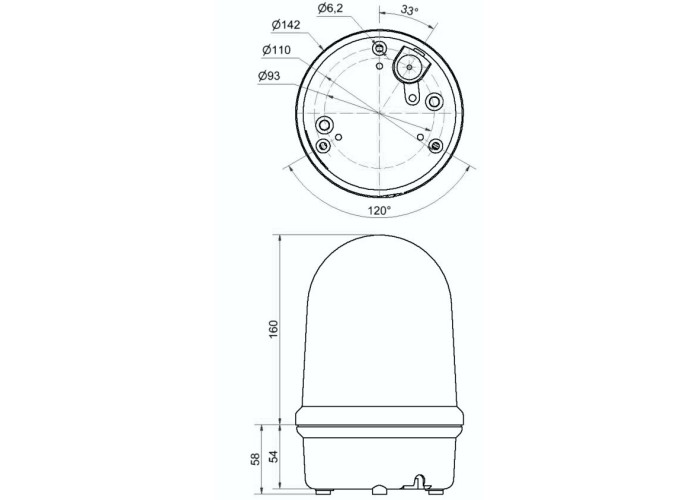

Mechanical Data

Height218.000000

Diameter142.000000

MaterialsPC; PC/ABS

Dome colourClear

Housing colourBlack

Weight with packaging562,00 g

Protection categoryIP65

ConnectionScrew terminals

Product weight432,00 g

Type of fixingBase mounting

Working temperature minimum-30°C

cross-sectional area maximum2,50mm² / 14AWG

Cable entryRubber pinch

Working temperature maximum+50°C

Cable entry minimumd = 5 mm

Cable entry maximumd = 7 mm

Electrical Data

Operating voltage230V

Operating voltage typeAC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage230 VAC

Rated operational current50.000000

Rated inrush current2.000 mA

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3

Optical Data

Light sourceLED

Optical signal imagePermanent

Intensity>10cd

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationYes

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
