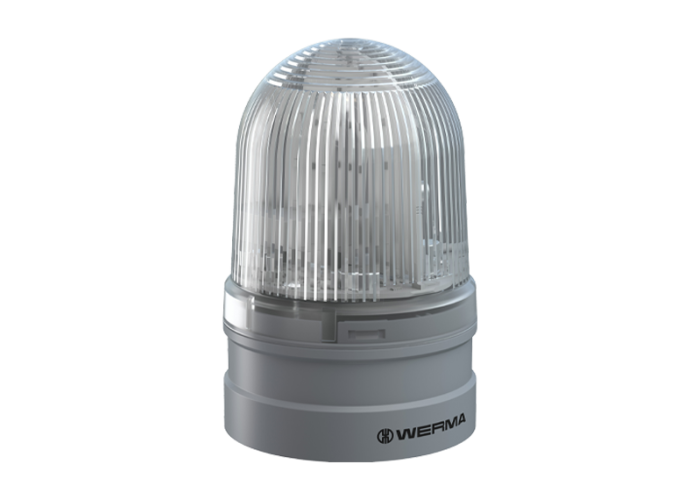

Midi трицветна лампа 12-24VAC/DC червена/жълта/зелена, Werma 261.430.70

Детайлна информация

Mechanical Data

Height130.000000

Diameter85.000000

MaterialsPC; PC/ABS

Dome colourClear

Housing colourGrey

Weight with packaging183,00 g

Protection categoryIP66

ConnectionPush-in terminal

Product weight143.000

Type of fixingAdapter required

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Working temperature maximum+60°C

cross-sectional area minimum0,25mm² / 24AWG

Electrical Data

Operating voltage12V; 24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage12 VDC

Rated operational current135.000000

Rated inrush current1A

Overvoltage categoryIII

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical50,000 h minimum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No
