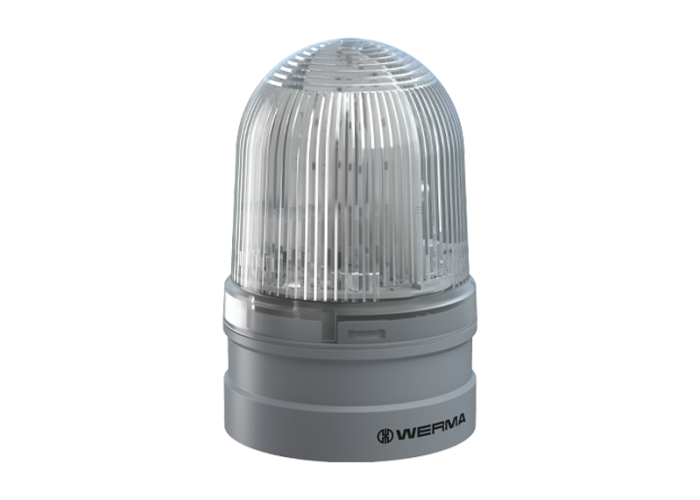

Midi лампаTwinFLASH проблясваща/EVS светлина по избор 115-230VAC прозрачна, Werma 261.420.60

Детайлна информация

Mechanical Data

Height130.000000

Diameter85.000000

MaterialsPC; PC/ABS

Dome colourClear

Housing colourGrey

Weight with packaging198,00 g

Protection categoryIP66

ConnectionPush-in terminal

Product weight156,00 g

Type of fixingAdapter required

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Working temperature maximum+60°C

cross-sectional area minimum0,25mm² / 24AWG

Electrical Data

Operating voltage115-230V

Operating voltage typeAC

Operating voltage frequency50Hz at 230V; 60Hz at 115V

Operating voltage tolerance+/- 10%

Rated operational voltage230 VAC

Rated operational current100.000000

Rated inrush current5,5A

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageEVS; Flash; TwinFlash

Flash frequency1 Hz

Service life optical50,000 h minimum

Pulse- & pause Duration [ms]28ON, 164OFF, 28ON, 744OFF

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCYes

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No
