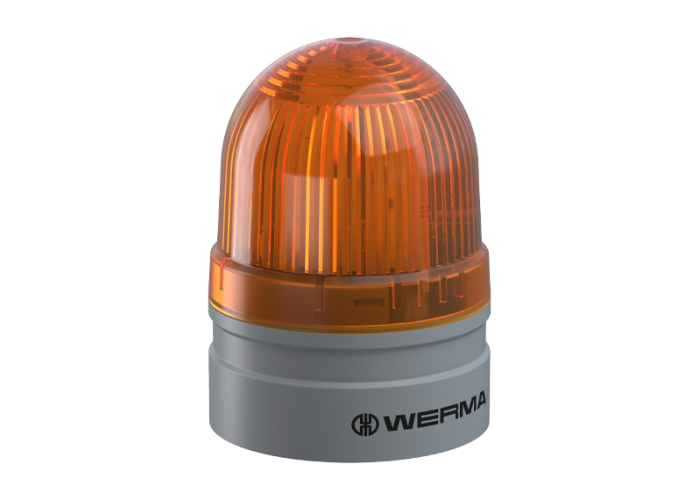

Mini лампа TwinFLASH проблясваща/EVS по избор, 24VAC/DC жълта, Werma 260.320.75

Детайлна информация

Mechanical Data

Height85.000000

Diameter62.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourGrey

Weight with packaging92.000

Protection categoryIP66

ConnectionPush-in terminal

Product weight71.000

Type of fixingAdapter required

Working temperature minimum-30°C

cross-sectional area maximum1,50mm² / 16AWG

Working temperature maximum+60°C

cross-sectional area minimum0,25mm² / 24AWG

Electrical Data

Operating voltage24V

Operating voltage typeAC/DC

Operating voltage frequency50Hz

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current66,00 mA

Rated inrush current1600 mA

Overvoltage categoryI

Protection classProtection class 2

Pollution degree3

Optical Data

Light sourceLED

Optical signal imageEVS; Flash; TwinFlash

Flash frequency1 Hz

Service life optical50,000 h minimum

Pulse- & pause Duration [ms]28ON, 165OFF, 28ON, 744OFF

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No
