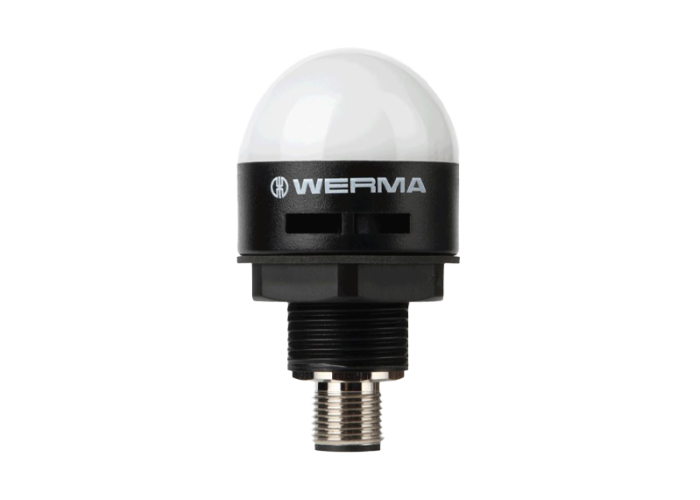

MC35 UL Трицветна лампа + зумер 24V RGY M12 конектор, Werma 241.440.55

Детайлна информация

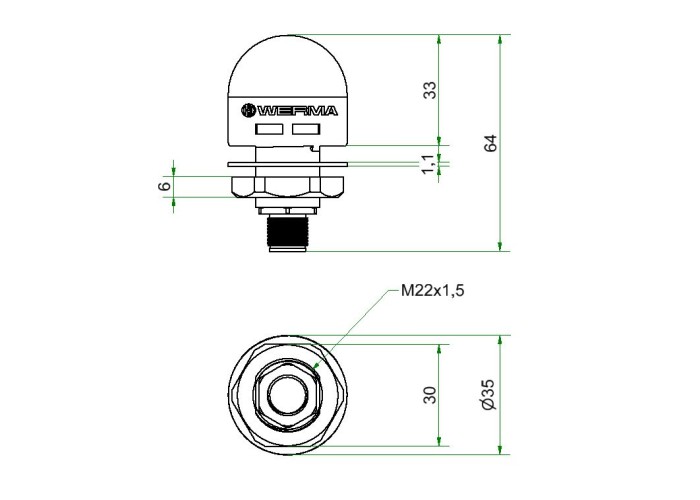

Mechanical Data

Height64.000000

Diameter35.000000

MaterialsPC

Dome colourTranclucent

Housing colourBlack

Weight with packaging65.000

Protection categoryIP65; IP69K

ConnectionM12 plug 5-pole

Product weight35.000

Tension reliefPull-out protection

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current32,00 mA

Rated inrush current600mA

Protection classProtection class 2

Pollution degree3; In the connection area: 2

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with CCC-ExNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 4X

EAC certificate availableNo

Conforms with AS-INo

Conforms with CMIMNo

Conforms with UKCA (Importer)Yes

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No

Acustical

Volume (max) at 1m distance80

Acoustic signal imageContinuous tone

Acoustic service life5,000 h minimum

Audio frequency3400.000000
