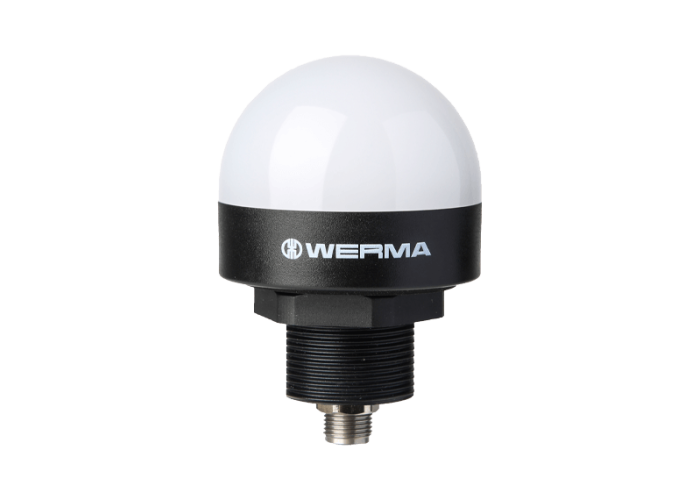

MC55 Многоцветна RGB лампа, зумер, кабел, 10-30VDC, Werma 240.130.50

Детайлна информация

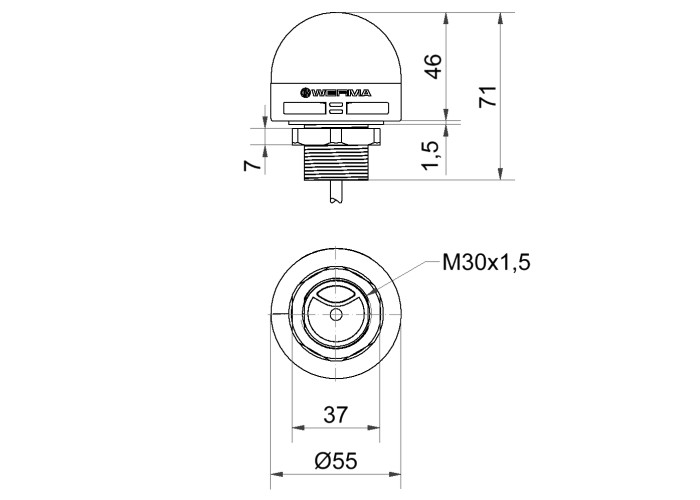

Mechanical Data

Cable length1450.000000

Height71.000000

Diameter55.000000

MaterialsPC; PC/ABS

Dome colourTranclucent

Housing colourBlack

Weight with packaging142,00 g

Protection categoryIP65

ConnectionCable

Product weight119,00 g

Tension reliefPull-out protection

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage10-30V

Operating voltage typeDC

Operating voltage tolerance+/- 0%

Rated operational voltage24 VDC

Rated operational current80.000000

Rated inrush current< 700mA

Protection classProtection class 2

Pollution degree3; In the connection area: 2

Optical Data

Light sourceLED

Optical signal imageBlink; Permanent

Blink frequency1 Hz

Service life optical50,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

MTTF-value [years]No

Acustical

Volume (max) at 1m distance85,0 dB (A)

Acoustic signal imagePulse tone

Acoustic service life5,000 h minimum

Audio frequency3400.000000

Number of tones1 tone
