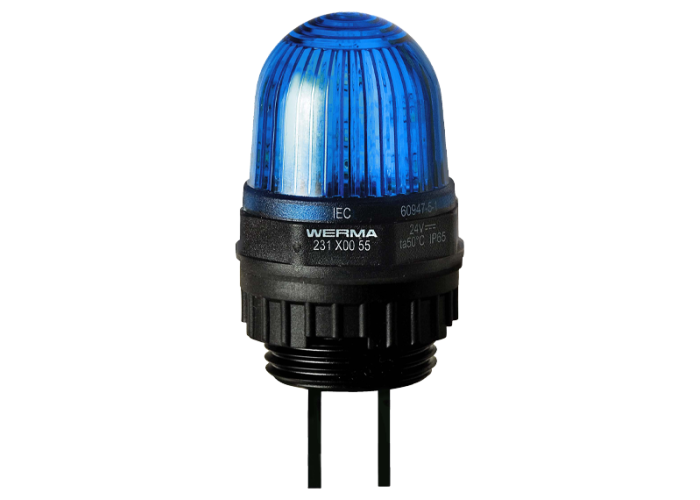

Micro LED инсталационна лампа, икономична 24V синя, Werma 231.504.55

Детайлна информация

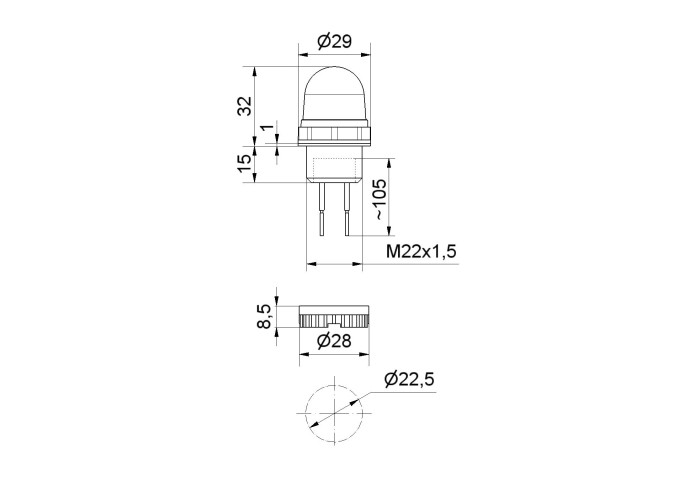

Mechanical Data

Cable length105.000000

Height152.000000

Diameter29.000000

MaterialsPC; PC/ABS

Dome colourBlue

Housing colourBlack

Weight with packaging20.000

Protection categoryIP65

ConnectionCable

Product weight14.000

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current30.000000

Rated inrush current500 mA

Protection classProtection class 2

Pollution degree3; In the connection area: 2

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical100,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
