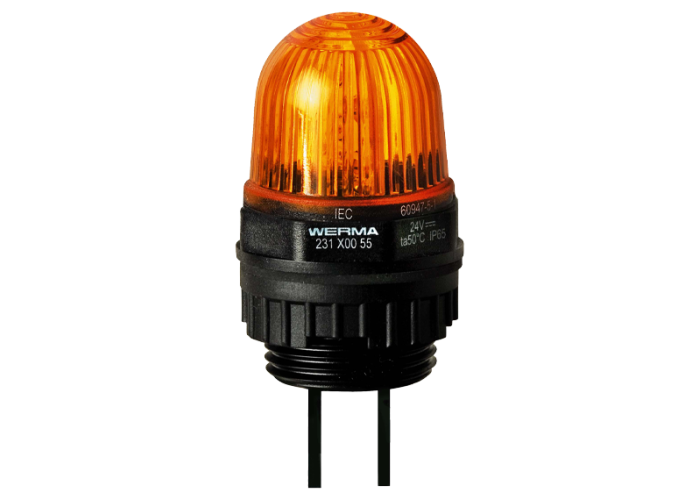

Micro LED инсталационна лампа 115VAC жълта, Werma 231.300.67

Детайлна информация

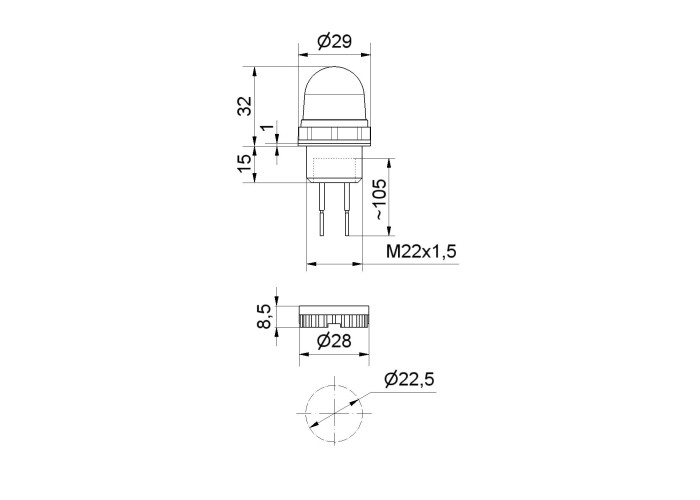

Mechanical Data

Cable length105.000000

Height152.000000

Diameter29.000000

MaterialsPC; PC/ABS

Dome colourYellow

Housing colourBlack

Weight with packaging21.000

Protection categoryIP65

ConnectionCable

Product weight16.000

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage115V

Operating voltage typeAC

Operating voltage frequency60Hz

Operating voltage tolerance+/- 10%

Rated operational voltage115 VAC

Rated operational current15.000000

Rated inrush current500 mA

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3; In the connection area: 2

Optical Data

Light sourceLED

Optical signal imagePermanent

Service life optical100,000 h maximum

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
