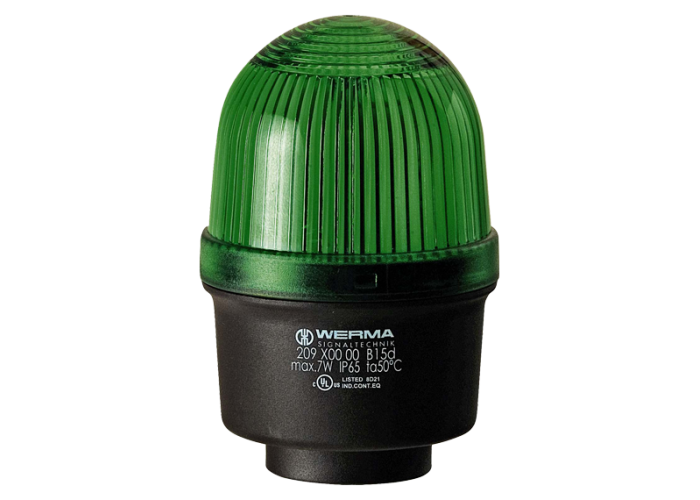

Лампа с постоянна светлина RM 12-230VAC/DC зелена, Werma 209.200.00

Детайлна информация

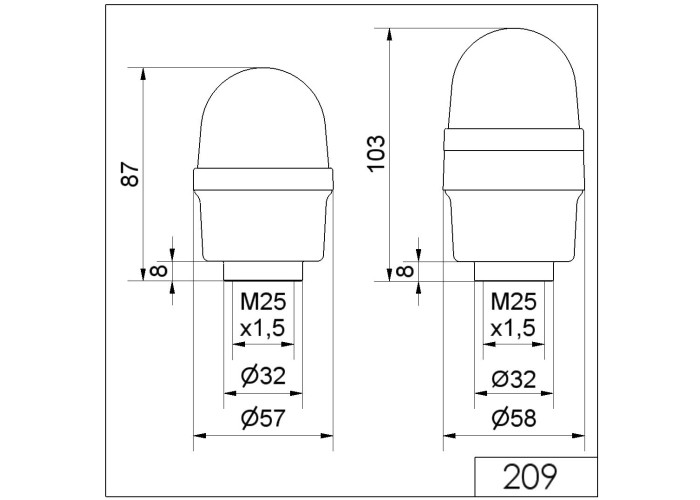

Mechanical Data

Height87.000000

Diameter57.000000

MaterialsPA-GF; PC

Dome colourGreen

Housing colourBlack

Weight with packaging84.000

Protection categoryIP65

ConnectionSpring-type terminal

Product weight62.000

Type of fixingTube mounting

Working temperature minimum-20°C

cross-sectional area maximum2,50mm² / 14AWG

Cable entryThrough hole

Working temperature maximum+50°C

Cable entry maximumd = 10 mm

Electrical Data

Operating voltage12-230V

Operating voltage typeAC/DC

Power illuminantmax. 7W

Overvoltage categoryII

Protection classProtection class 2

Isolation voltageUi = 250V; Uimp = 2.500V

Pollution degree3

Optical Data

Service life opticaldepends on bulb

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULcULus

Conforms with FCCNo

Conforms with ICNo

UL Type RatingType 12

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo
