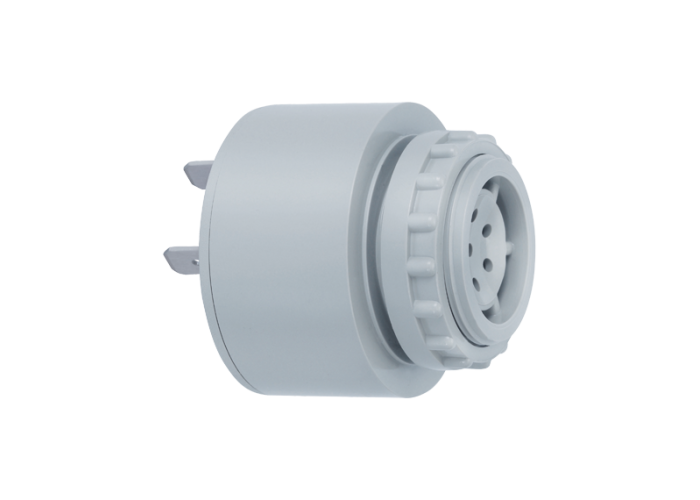

Електронен зумер, 3-тонален 24VDC сив, Werma 119.004.55

Детайлна информация

Mechanical Data

Height49.000000

Diameter43.000000

MaterialsPC/ABS

Housing colourGrey

Weight with packaging42.000

Protection categoryIP30

ConnectionFlat plug

Product weight30.000

Type of fixingBuilt-in mounting

Working temperature minimum-20°C

Working temperature maximum+50°C

Electrical Data

Operating voltage24V

Operating voltage typeDC

Operating voltage tolerance+/- 10%

Rated operational voltage24 VDC

Rated operational current25.000000

Protection classProtection class 2

Pollution degree2

Authorisation data

Conforms with CEYes

Conforms with RoHS directiveYes

WEEEYes

Conforms with ATEX-directiveNo

Conforms with CCCNo

Conforms with ULNo

Conforms with FCCNo

Conforms with ICNo

EAC certificate availableYes

Conforms with AS-INo

Conforms with UKCA (Importer)Yes

ICAO CertificationNo

Conforms with DNVNo

Conforms with RoHS CNNo

Conforms with TÜVNo

Conforms with VdSNo

Acustical

Volume (max) at 1m distance90,0 dB (A)

Acoustic signal imageMulti-tone

Acoustic service life5,000 h minimum

Audio frequency2400.000000

Number of tones3 tone
