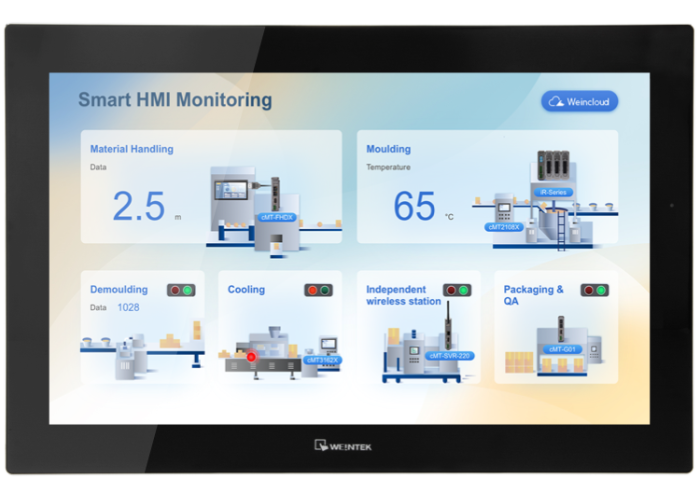

21.5" WVA Сензорен екран, 1920x1080px, 16.7M цвята, 1000:1, 24 VDC, LED, Weintek cMT3218XP

Детайлна информация

Display

Display21.5" WVA

Resolution1920 x 1080

Brightness (cd/m2)500

Contrast Ratio41.6673611111111

Backlight TypeLED

Backlight Life Time>30,000 hrs.

Colors16.7M

LCD View Angle (T/B/L/R)89/89/89/89

Pixel Pitch (mm)0.24795 (H) x 0.24795 (V)

Touch Panel

TypeTempered Glass, Capacitive Type

Hardness Scale≧ 6H

Memory

Flash4 GB

RAM2 GB

Processor

ProcessorQuad-core RISC

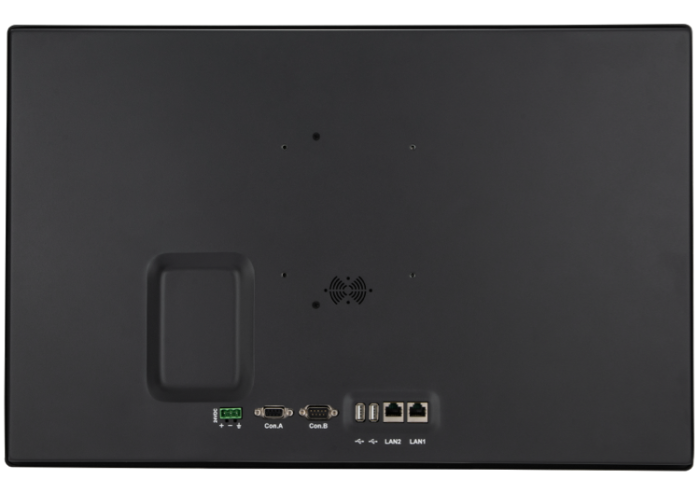

I/O Port

SD Card SlotN/A

USB HostUSB 2.0 x 2

Ethernet PortLAN 1: 10/100/1000 Base-T x 1

LAN 2: 10/100 Base-T x 1

WiFiN/A

COM PortCon.A: COM2 RS-485 2W/4W, COM3 RS-485 2W,CAN Bus

Con.B: COM1 RS-232 4W, COM3 RS-232 2W*(1)

RS-485 Dual IsolationN/A

CAN BusYes

Audio OutputBuilt-in Mono Speaker

RTC

RTCBuilt-in

Power

Input Power24±20% VDC

Power IsolationBuilt-in

Power Consumption1.8A@24VDC

Voltage Resistance500VAC (1 min.)

Isolation ResistanceExceed 50MΩ at 500VDC

Specification

PCB CoatingYes

EnclosureAluminum

Dimensions WxHxD546 x 354 x 47.5 mm

Panel Cutout532 x 340 mm

WeightApprox. 5.5 kg

MountPanel mount, VESA mount 100 x 100 mm

Environment

Protection StructureNEMA4 / IP66 Compliant Front Panel

Storage Temperature-20° ~ 60°C (-4° ~ 140°F)

Operating Temperature0° ~ 50°C (32° ~ 122°F)

Relative Humidity10% ~ 90% (non-condensing)

Altitude (Air Pressure)N/A

Vibration Endurance10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Certificate

CECE marked

ULN/A

Software

WeincloudEasyAccess 2.0 (Optional)

Dashboard (Optional)

CODESYSOptional
