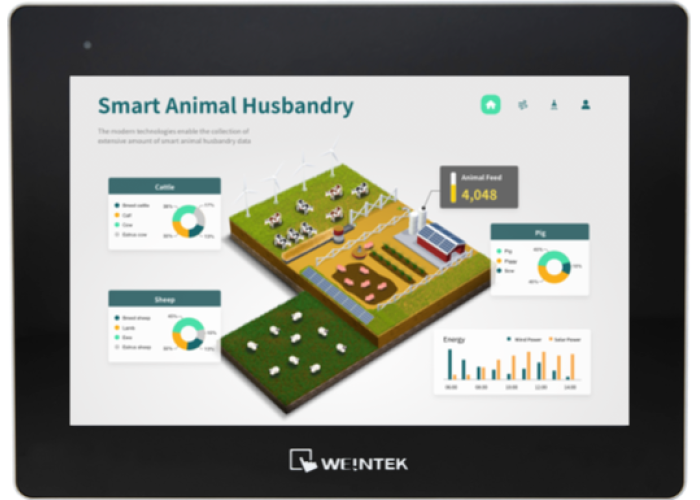

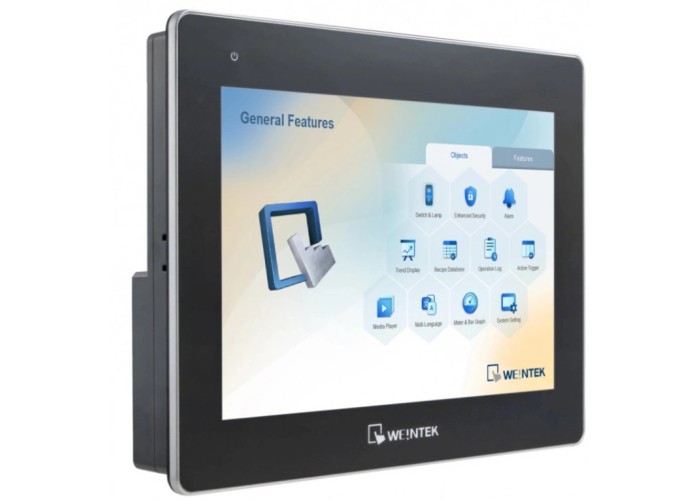

10.1” WVA Сензорен екран, 1280x800px, 16.7M цвята, 800:1, LED, Weintek cMT3108XP

Детайлна информация

Display10.1” WVA

Resolution1280 x 800

Brightness (cd/m²)425

Contrast Ratio800:1

Backlight TypeLED

Backlight Life Time>50,000 hrs.

Colors16.7M

LCD Viewing Angle (T/B/L/R) 89/89/89/89

Pixel Pitch (mm)0.1695 (H) x 0.1695 (V)

TypeTempered Glass, Capacitive Type (Hardness Scale 7H)

AccuracyN/A

Flash4 GB

RAM1 GB

ProcessorQuad-core RISC

SD Card SlotN/A

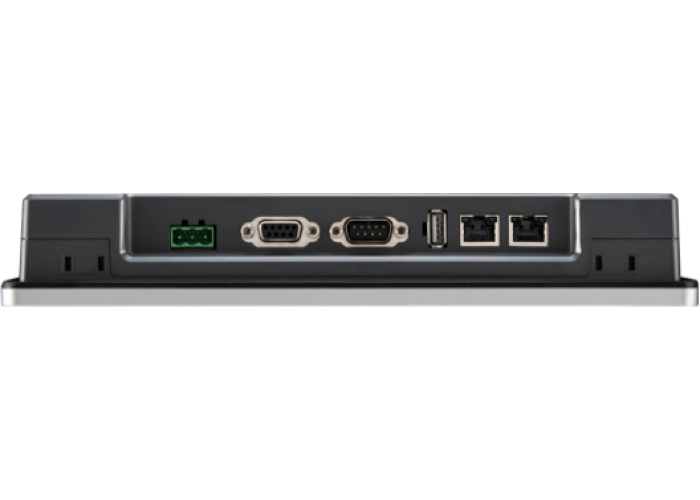

USB HostUSB 2.0 x 1

EthernetLAN 1: 10/100/1000 Base-T x 1LAN 2: 10/100 Base-T x 1

WiFiM02 WiFi Expansion Module(Optional)

COM PortCon.A:COM2 RS-485 2W/4W, COM3 RS-485 2W,CAN BusCon.B: COM1 RS-232 4W, COM3 RS-232 2W*(1)

RS-485 Dual IsolationN/A

CAN BusYes

Audio OuputBuilt-in Mono Speaker

RTCBuilt-in

Input Power24±20%VDC

Power IsolationBuilt-in

Power Consumption700mA@24VDC

Voltage Resistance500VAC (1 min.)

Isolation ResistanceExceed 50MΩ at 500VDC

PCB CoatingYes

EnclosurePlastic

Dimensions WxHxD266 x 196 x 42.7 mm

Panel Cutout255 x 185 mm

WeightApprox. 1.1 kg

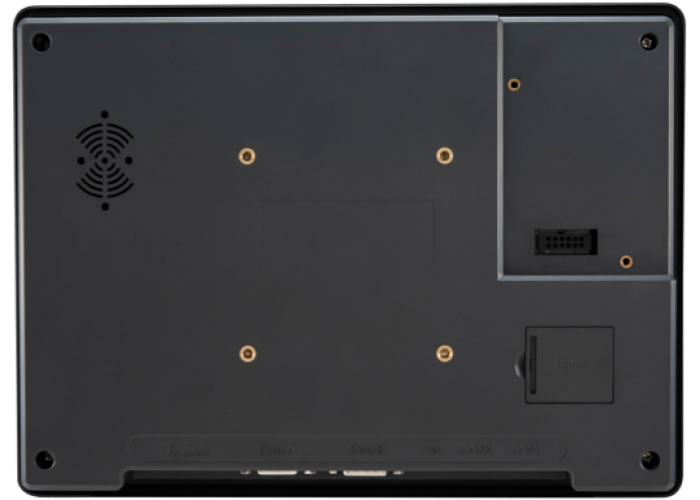

MountPanel mount, VESA mount 75 x 75 mm

Protection StructureUL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel

Storage Temperature-20° ~ 60°C (-4° ~ 140°F)

Operating Temperature0° ~ 55°C (32° ~ 131°F)

Relative Humidity10% ~ 90% (non-condensing)

Altitude (Air Pressure)Below 3,000 meters (70.1kPa)

Vibration Endurance10 to 25Hz (X, Y, Z direction 2G 30 minutes)

CECE marked

ULcULus Listed

ATEXATEX Zone 2/22 Category 3 G/D

WeincloudEasyAccess 2.0 (Optional))Dashboard (Optional)

CODESYSOptional
