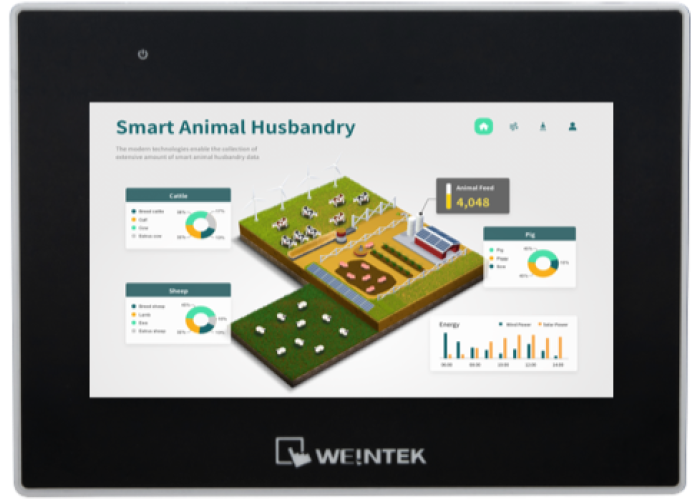

7" WVA Сензорен екран, 1024х600px, 16.7M цвята, 800:1, възможност за Wi-Fi модул, Weintek cMT3072XH3

Детайлна информация

Display

Display7" WVA

Resolution1024 x 600

Brightness (cd/m2)550

Contrast Ratio33.3340277777778

Backlight Life Time>30,000 hrs.

Colors16.7M

LCD View Angle (T/B/L/R)85/85/85/85

Pixel Pitch (mm)0.1506(H) x 0.1432(V)

Touch Panel

Type4-wire Resistive Type

AccuracyActive Area Length(X)±2%, Width(Y)±2%

Memory4 GB

Flash1 GB

Processor

RAMQuad-core RISC

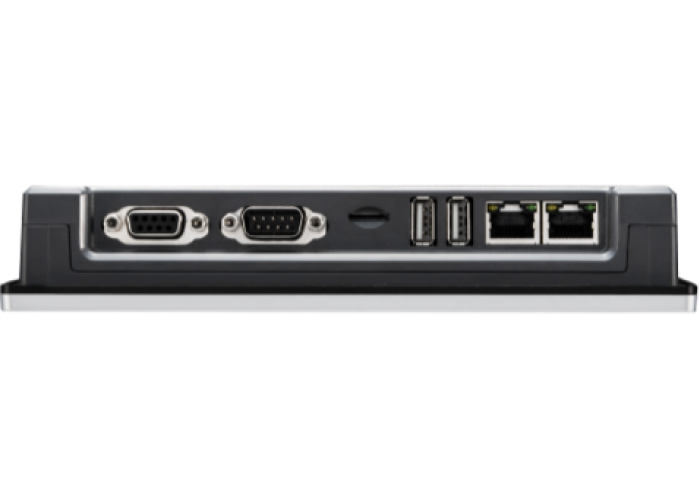

I/O Port

CPUmicroSD x 1

Memory Card TypeUSB 2.0 x 2

USB HostLAN 1: 10/100 Base-T x 1

Ethernet PortLAN 2: 10/100 Base-T x 1

COM PortCon.A: COM2 RS-485 2W/4W, COM3 RS-485 2W

WiFiCon.B: COM1 RS-232 4W, COM3 RS-232 2W*(1)

RS-485 Dual IsolationM02 WiFi Expansion Module (Optional)

CAN BusN/A

Audio OutputN/A

Input PowerN/A

Power

Power Isolation24±20% VDC

Power ConsumptionBuilt-in

Voltage Resistance700mA@24VDC

Isolation Resistance500VAC (1 min.)

EnclosureExceed 50MΩ at 500VDC

Mechanical

Dimensions WxHxDPlastic

Panel Cutout200.3 x 146.3 x 36 mm

Weight192 x 138 mm

MountApprox. 0.6 kg

PCB CoatingPanel mount

Environment

Protection StructureYes

Storage TemperatureUL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel

Operating Temperature-20° ~ 60°C (-4° ~ 140°F)

Relative Humidity0° ~ 55°C (32° ~ 131°F)

Altitude10% ~ 90% (non-condensing)

Vibration Endurance3,000 m

CE10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Certificate

ULCE marked

WeincloudcULus Listed

Software

CODESYSEasyAccess 2.0 (Optional)

Dashboard (Optional)

Optional
