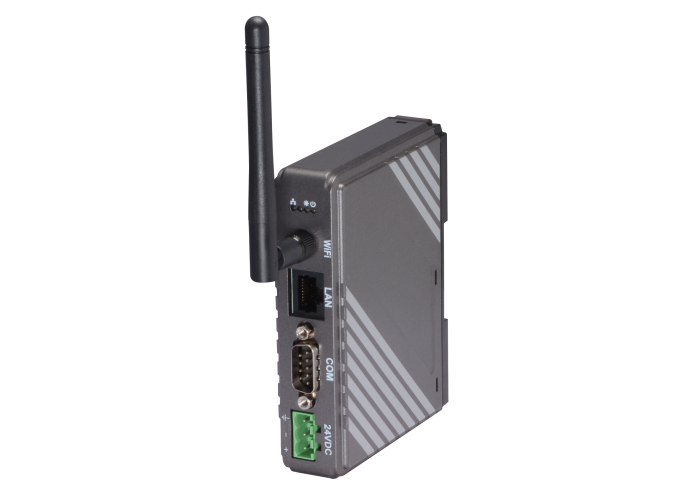

Мрежов преобразувател, Flash 256 MB, RAM 256 MB, Wi-Fi, Weintek cMT-G02

Основни

Flash256 MB

RAM256 MB

ProcessorSingle-core RISC

Ethernet10/100 Base-T x 1

WiFiIEEE 802.11 b/g/n ; 802.11b: max 15.88 dBm ; 802.11g: max 11.92 dBm ; 802.11n: max 11.28 dBm

COM PortCOM1: RS-232 2WCOM2: RS-485 2W/4WCOM3: RS-485 2W

RTCBuilt-in

Input Power10.5~28VDC

Power IsolationBuilt-in

Power Consumption230mA@12VDC;115mA@24VDC

Voltage Resistance500VAC (1 min.)

Isolation ResistanceExceed 50MΩ at 500VDC

PCB CoatingYes

EnclosurePlastic

Dimensions WxHxD27 x 109 x 81 mm

WeightApprox. 0.14 kg

Mount35 mm DIN rail mounting

Protection StructureIP20

Storage Temperature-20° ~ 60°C (-4° ~ 140°F)

Operating Temperature0° ~ 50°C (32° ~ 122°F)

Relative Humidity10% ~ 90% (non-condensing)

Altitude (Air Pressure)Below 3,000 meters (70.1kPa)

Vibration Endurance10 to 25Hz (X, Y, Z direction 2G 30 minutes)

CECE Marked

ULcULus Listed

SoftwareEasyBuilder Pro ; EasyAccess 2.0 (Optional)
