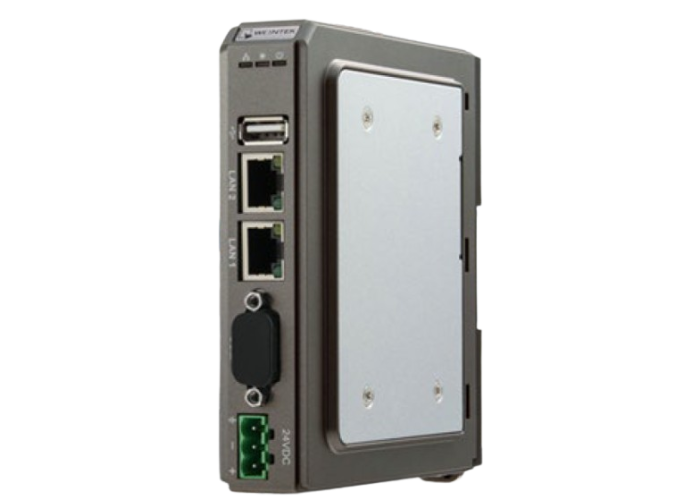

HMI без дисплей, Flash 4GB, RAM 1GB, Ethernet ports, HDMI output, Weintek cMT-FHDX-820 (W)

Детайлна информация

Memory

Flash4 GB

RAM1 GB

Processor

ProcessorQuad-core RISC

I/O Port

SD Card Slot microSD ×1

USB Host USB 2.0 × 1

USB Client N/A

Ethernet LAN 1: 10/100/1000 Base-T × 1

LAN 2: 10/100 Base-T × 1

COM PortN/A

RS-485 Dual IsolationN/A

CAN BusN/A

HDMI Output max. resolution 1920 x 1080

Audio Output HDMI Audio Output

RTC

RTCBuilt-in

Power

Input Power 24±20%VDC

Power Isolation Built-in

Power Consumption 850mA@24VDC

Voltage Resistance 500VAC (1 min.)

Isolation Resistance Exceed 50MΩ at 500VDC

Specification

PCB Coating Yes

Enclosure Plastic

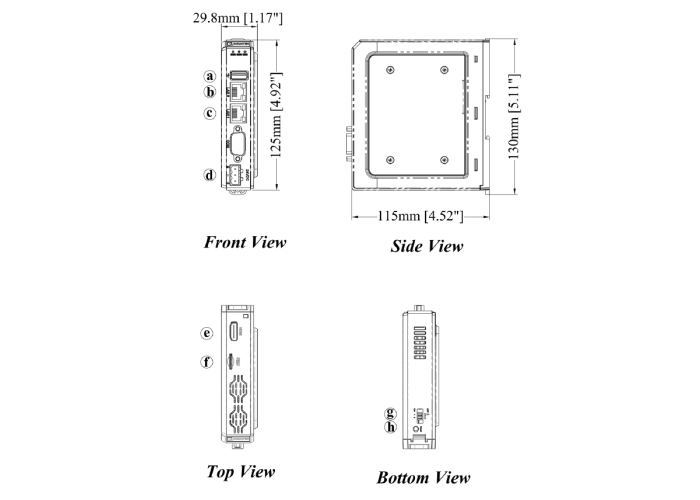

Dimensions W×H×D 29.8 × 130 × 115 mm

Weight Approx. 0.24 kg

Mount 35mm DIN rail mounting

Environment

Protection Structure IP20

Storage Temperature -20° ~ 60°C (-4° ~ 140°F)

Operating Temperature 0° ~ 50°C (32° ~ 122°F)

Relative Humidity 10% ~ 90% (non-condensing)

Altitude 3,000 m

Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes)

Certificate

CE CE marked

UL cULus Listed

Software

Browser Chromium 132 (Upgradable)*

Weincloud EasyAccess 2.0 (Optional)
