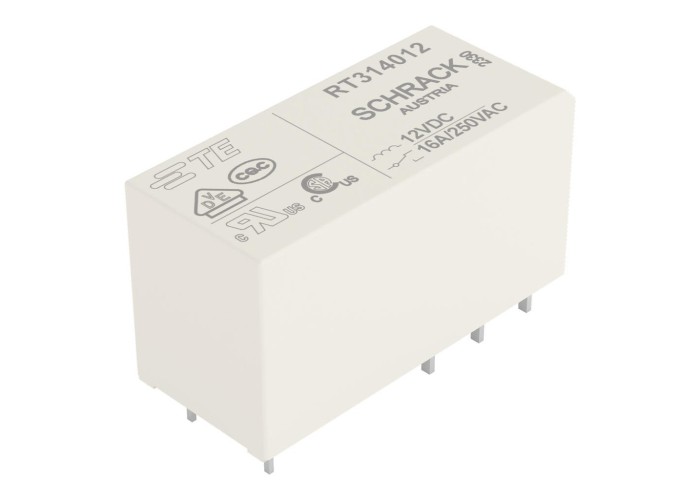

Базово реле 12 VDC, 1 превключващ контакт, 16A, Wago 788-150

Основни

Nominal input voltage UNDC 12 V

Nominal input current at UN34 mA

Number of changeover/switchover contacts1

Contact material (relay)AgNi 90/10

Limiting continuous current16 A

Inrush current (resistive) max.(AC) 30 A / 4 s

Switching Voltage, Max.AC 250 V

Switching power (resistive) max.AC 4000 VA; DC (see load limit curve)

Switching capacityAC-15: 6 A / AC 250 V; DC-13: 2 A / DC 24 V

Recommended minimum load12 V / 10 mA

Pull-in time (typ.)8ms

Drop-out time (typ.)6ms

Bounce time (typ.)6ms

Electrical life (NO; resistive load; 23 °C)30 x 10³ switching operations

Mechanical life30 x 10⁶ switching operations

Switching frequency with/without load (max.)6 min-1 / 1200 min-1
