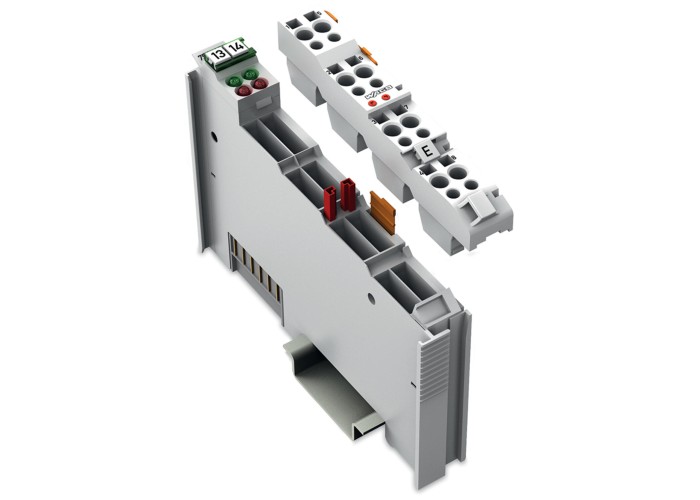

2-канален аналогов вход, Термодвойка K, Диагностика, регулируема, Wago 753-469/003-000

Детайлна информация

NotePluggable connectors and coding fingers (753 Series) are not included.

Number of analog inputs2

Total number of channels (module)2

Signal typeThermocouple Low voltages

Signal type (configurable)Yes

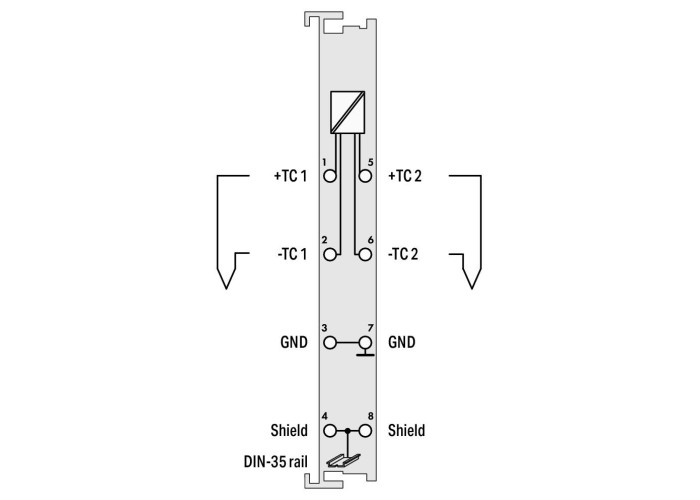

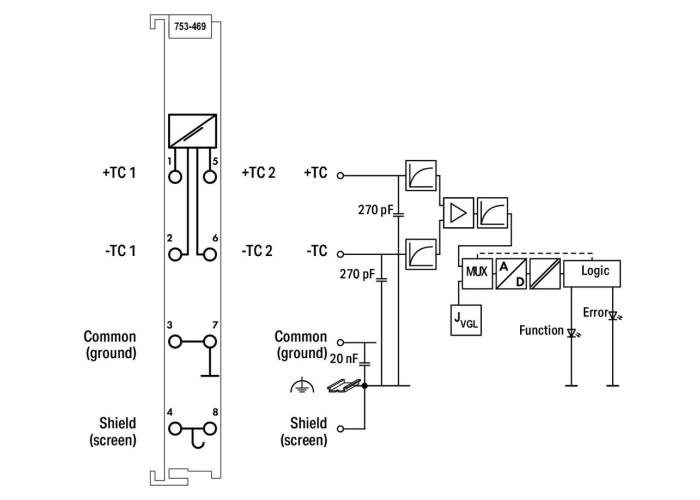

Sensor connection2 x (2-wire)

Data width2 x 16-bit data; 2 x 8-bit control/status (optional)

Internal resistance1000 kΩ

Resolution (over entire range)0.1 °C

Conversion time (typ.)320 ms

Measurement error (25 °C)< ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K)

Temperature coefficient< ±0.2 K/K

Sensor typesThermocouple K; Configurable: L, J, E, T, N, U, B, R, S, mV

Temperature rangeSensor-specific

Cold junction compensationна всяка двойка клеми

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)65 mA

Isolation500 V system/field

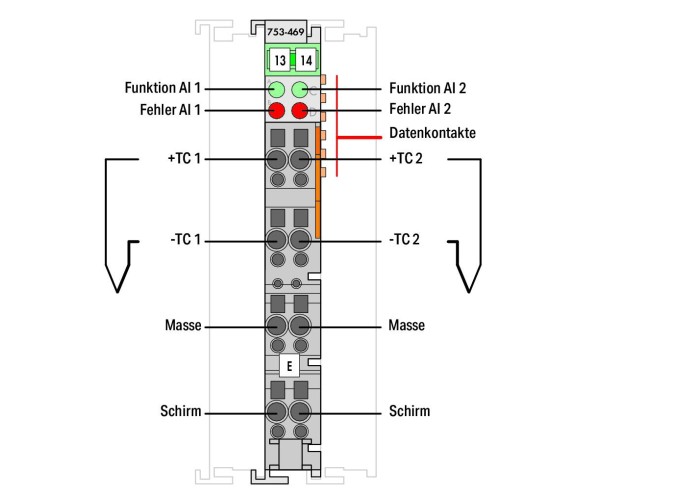

IndicatorsLED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2

Connection technology: I/O8 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeInputs/outputs

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length9 … 10 mm / 0.35 … 0.39 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth69,8 mm / 2.748 inches

Depth from upper-edge of DIN-rail62,6 mm / 2.465 inches

Mounting typeDIN-35 rail

Pluggable connectorщепселен

Housing materialPolycarbonate; polyamide 6.6

Fire load0,773 MJ

Weight43,5 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistance4g per IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2, морски приложения

EMC emission of interferenceпо EN 61000-6-4, морски приложения

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454394509

Customs tariff number85437090990

UNSPSC32101602

eCl@ss 10.027-24-26-01

eCl@ss 9.027-24-26-01

ETIM 9.0EC001596

ETIM 10.0EC001596

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 25550-51-0 7439-92-1

REACH Candidate List Substance4-Methyl-1,2-cyclohexanedicarboxylic anhydride Diboron trioxide Lead Lead monoxide

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II
