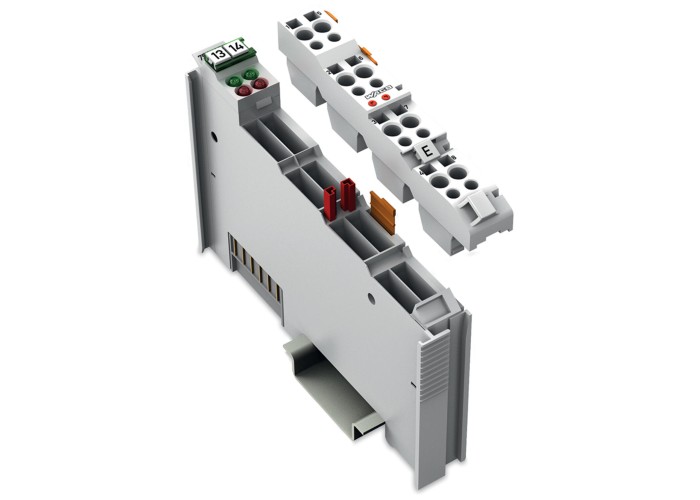

2-канален аналогов вход, За датчици за съпротивление Pt100/RTD, Регулируем, Wago 753-461/003-000

Детайлна информация

NotePluggable connectors and coding fingers (753 Series) are not included.

Number of analog inputs2

Total number of channels (module)2

Signal typeResistance measurement

Signal type (configurable)Yes

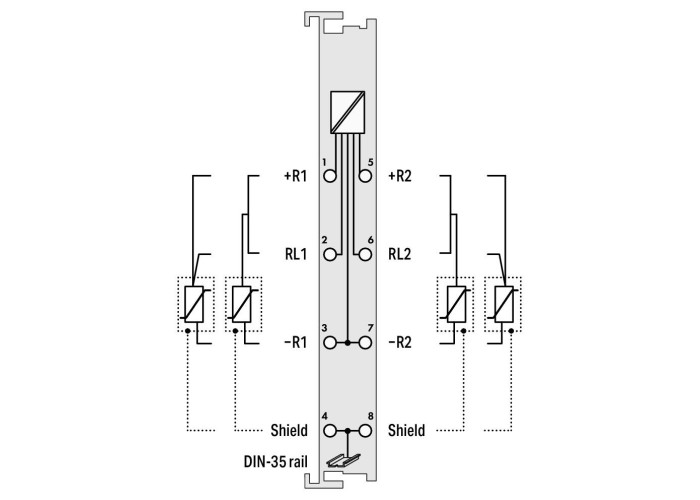

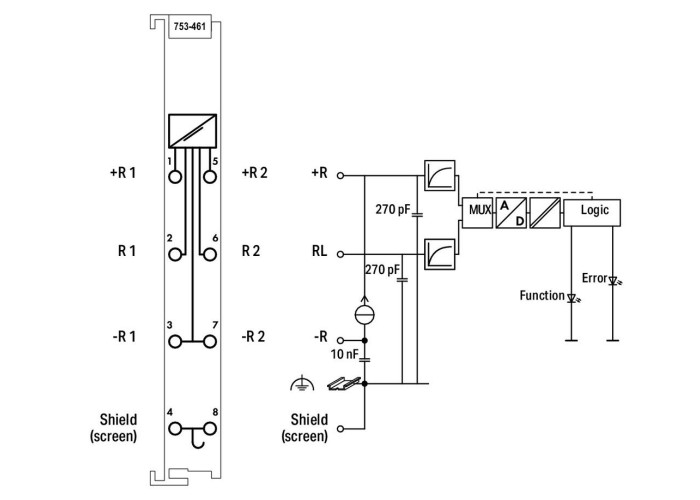

Sensor connection2 x (2-wire, 3-wire)

Data width2 x 16-bit data; 2 x 8-bit control/status (optional)

Resolution (over entire range)0.1 °C

Conversion time (typ.)320 ms

Measurement error (reference temperature)25 °C

Measurement error, deviation (max.) from the upper-range value0.2 %

Temperature error (max.) of the upper-range value0.01 %/K

Measuring current (typ.)0.5 mA

Response time (max.)4 s

Sensor typesPt100; Configurable: Pt, Ni, Ohm

Temperature range−200 °C … +850 °C (Pt), −60 °C … +250 °C (Ni)

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)80 mA

Isolation500 V system/field

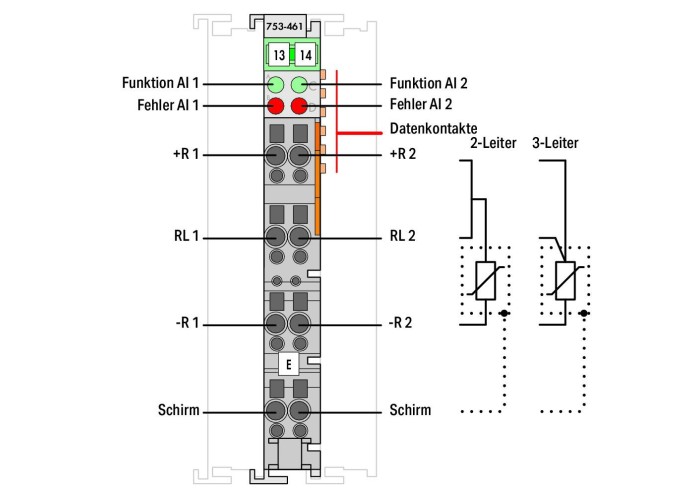

IndicatorsLED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2

Connection technology: I/O8 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeInputs/outputs

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length9 … 10 mm / 0.35 … 0.39 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth69,8 mm / 2.748 inches

Depth from upper-edge of DIN-rail62,6 mm / 2.465 inches

Mounting typeDIN-35 rail

Pluggable connectorщепселен

Housing materialPolycarbonate; polyamide 6.6

Fire load0,773 MJ

Weight41,8 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistance4g per IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2, морски приложения

EMC emission of interferenceпо EN 61000-6-4, морски приложения

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454487287

Customs tariff number85437090990

UNSPSC32101506

eCl@ss 10.027-24-26-01

eCl@ss 9.027-24-26-01

ETIM 9.0EC001596

ETIM 10.0EC001596

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 25550-51-0 7439-92-1

REACH Candidate List Substance4-Methyl-1,2-cyclohexanedicarboxylic anhydride Diboron trioxide Lead Lead monoxide

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption7(c)-I 6(c) 7(a) 7(c)-I 7(c)-II

SCIP notification number (Austria)4c7cfb34-29e1-4ce4-a715-87a310c2e06c
