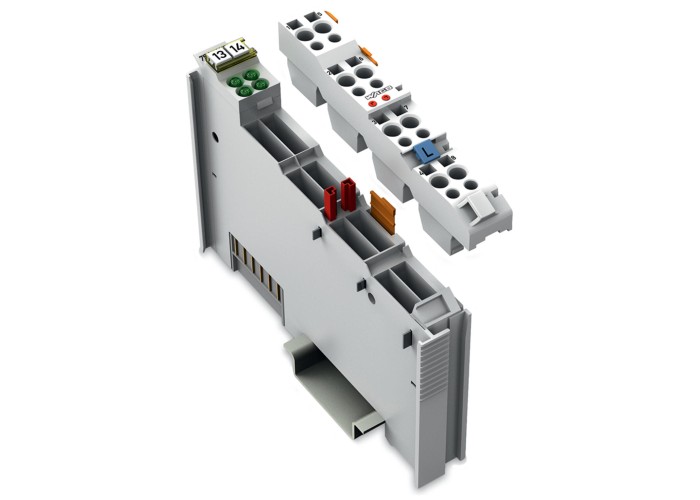

4-канален цифров вход, 120/230 VAC, Wago 753-440

Детайлна информация

NotePluggable connectors and coding fingers (753 Series) are not included.

Number of digital inputs4

Total number of channels (module)4

Signal typeDigital

Signal type (voltage)120 VAC

Sensor supply230 VAC

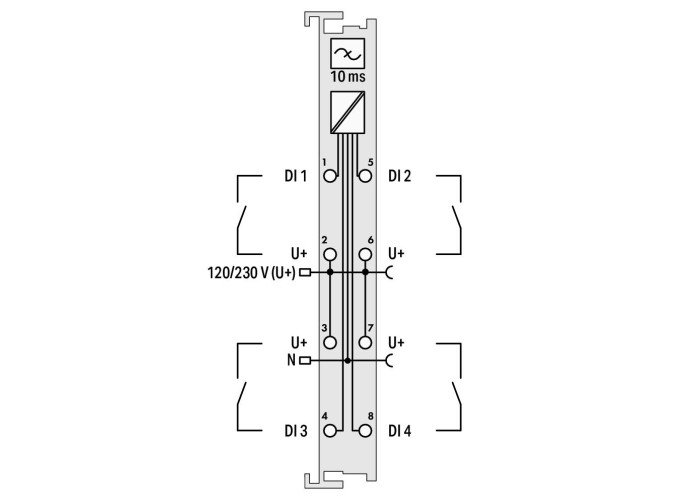

Sensor connection4 x (2-wire)

Input characteristicкомутиране по фаза

Input filter10 ms

Voltage range for signal (0)0 … 40 VAC

Voltage range for signal (1)79 … 230 VAC (−15 … +10 %)

Signal frequency (min.)45 Hz

Signal frequency (max.)65 Hz

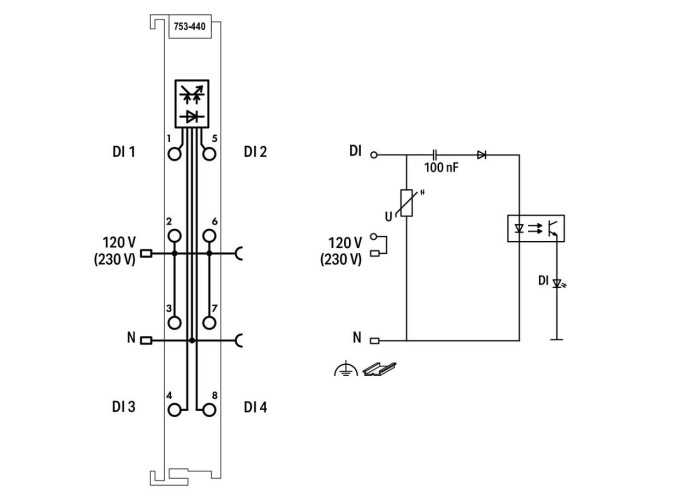

Protection against incorrect wiringOvervoltage protection (275 V) via varistor

Input data width (internal) max.4 Bit

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)15 mA

Supply voltage (field)230 VAC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

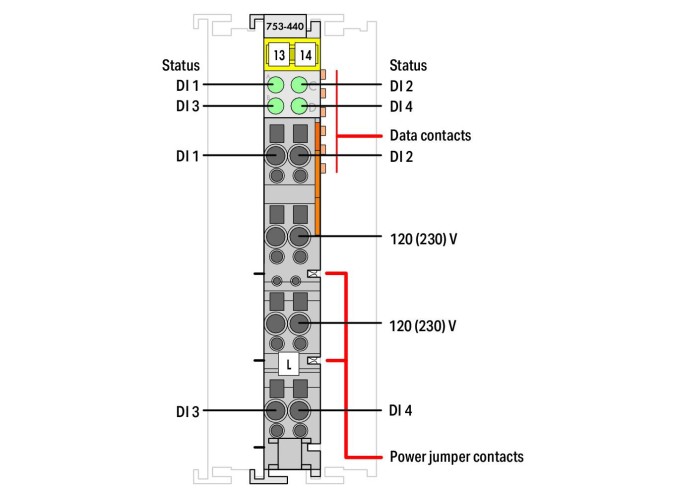

IndicatorsLED (A-D) green: Status DI 1 … DI 4

Number of incoming power jumper contacts2

Number of outgoing power jumper contacts2

Current carrying capacity (power jumper contacts)10 A

Protection typeIP20

Pollution degree2 per IEC 61131-2

Connection technology: I/O8 x CAGE CLAMP (wejścia)

Connectable conductor materialsCopper

Connection typeInput

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length9 … 10 mm / 0.35 … 0.39 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth69,8 mm / 2.748 inches

Depth from upper-edge of DIN-rail62,6 mm / 2.465 inches

Mounting typeDIN-35 rail

Pluggable connectorщепселен

Colorсветло сив

Housing materialPolycarbonate; polyamide 6.6

Fire load1,407 MJ

Weight42,5 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-40 … +85 °C

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistanceпо IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2

EMC emission of interferenceпо EN 61000-6-4

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454394455

Customs tariff number85176200000

UNSPSC32151705

eCl@ss 10.027-24-26-04

eCl@ss 9.027-24-26-04

ETIM 9.0EC001599

ETIM 10.0EC001599

ECCNNO US CLASSIFICATION

RoHS Compliance StatusCompliant,No Exemption
