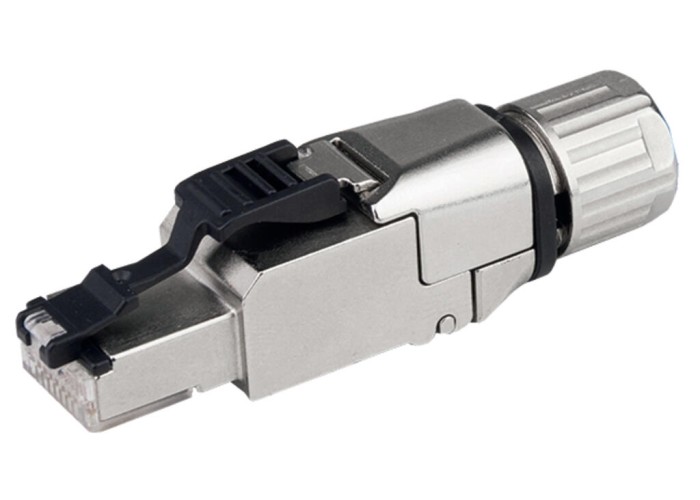

Конектор ETHERNET, RJ-45, Кат. 6A, прав, Код T568B, AWG 22, Укрепване на проводника, Wago 750-978/000-012

Детайлна информация

Connection typeRJ-45 plug

Pole number8

Cable connection direction to mating direction0 °

Communication/fieldbusETHERNET

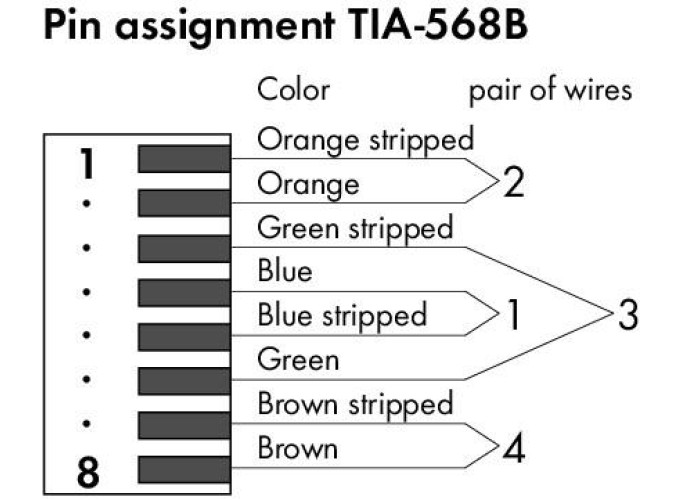

CodeTIA-568B

Transmission rate10000 Mbit/s

Connection typeIDC contact

Solid conductor0,21 … 0,32 mm² / 24/1 … 22/1 AWG

Stranded conductor0,11 … 0,36 mm² / 27/7 … 22/7 AWG

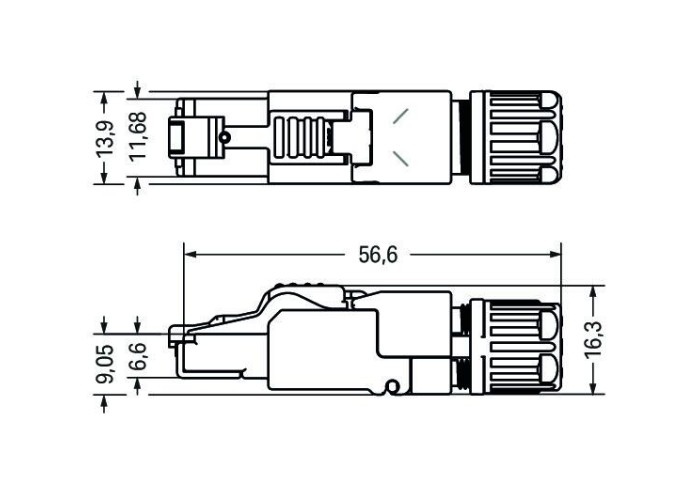

Width13,9 mm

Height16,3 mm

Depth56,6 mm

Connection requirement (permissible cable type)Cat. 6A

Connectable sheathed cable diameter5,5 … 10 mm

Housing materialZinc die casting

Weight22 g

Ambient temperature (operation)-40 … +85 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Relative humidity (without condensation)95 %

Standards/specificationsIEC60603-7-51, ISO/IEC 11801, IEEE 802.3an EIA/TIA 568-C.2 DIN EN 50173-1 UL 1863 UL 2043

PU (SPU)1 бр.

Packaging typeТорба

Country of originTW

GTIN4055143586245

Customs tariff number85366990990

UNSPSC39121413

eCl@ss 10.027-24-26-92

eCl@ss 9.027-24-26-92

ETIM 9.0EC001121

ETIM 10.0EC002584

ECCNNO US CLASSIFICATION

RoHS Compliance StatusCompliant,No Exemption
