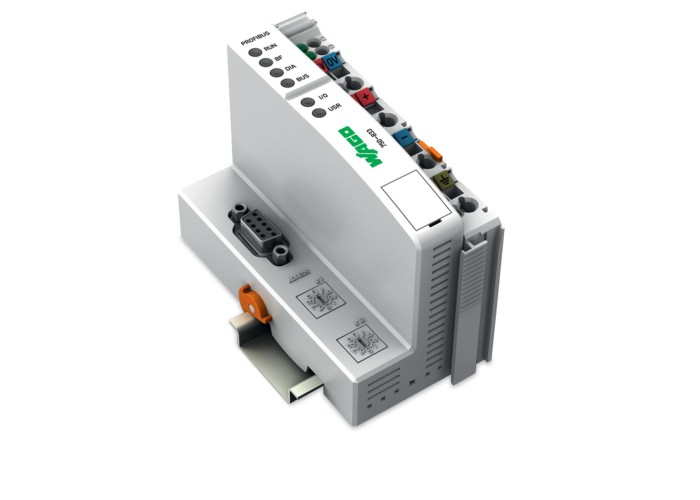

Контролер PROFIBUS Slave, Wago 750-833

Детайлна информация

NoteNote: Configuration files required (GSD)! The GSD files can be downloaded for free at www.wago.com.

CommunicationsPROFIBUS

Visualizationбез none

CPU16 бита

Programming languages per IEC 61131-3Непрекъсната функционална диаграма (CFC) Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)

Programming environmentWAGO-I/O- PRO V2.3 (based on CODESYS V2.3)

Configuration optionsGSD device description file WAGO-I/O- CHECK

Cycle time< 3 ms for 1000 bit instructions/ 256 digital I/O

Transmission rate9,6 kBd … 12 MBd

Bus segment length (max.)1200 m

Transmission medium (communication/fieldbus)Cu cable per EN 50170

Transmission timetyp. 1 ms (10 controllers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms

Number of fieldbus nodes on master (max.)96

Number of I/O points6 000

Program memory128 KB

Data memory64 KB

Non-volatile software memory8 kbyte

Memory for fieldbus input variables (max.)244 Byte

Memory for fieldbus output variables (max.)244 Byte

Number of modules per node (max.)63

Number of modules without a bus extension (max.)63

Input and output process image (fieldbus) max.244 bytes/244 bytes

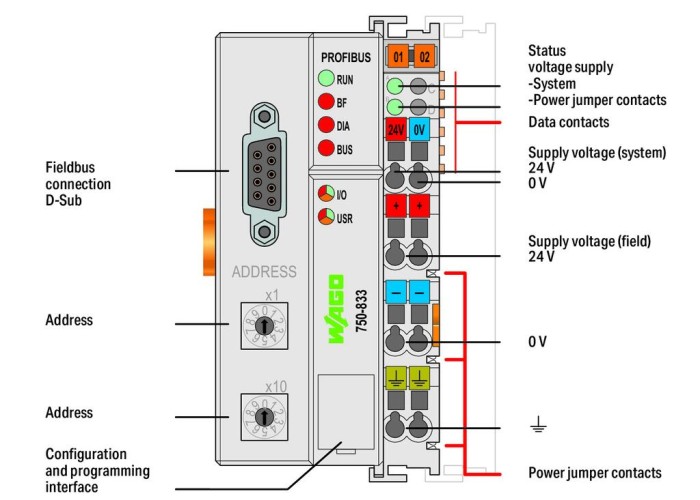

IndicatorsLED (RUN) green: Fieldbus initialization, LED (BF, DIA, BUS) red: communication error, external diagnostics, configuration; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply

Supply voltage (system)24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP ® connection)

Input current (typ.) at nominal load (24 V)500 mA

Power supply efficiency (typ.) at nominal load (24 V)87 %

Current consumption (5 V system supply)200 mA

Total current (system supply)1 800 mA

Supply voltage (field)24 VDC (-25 … +30 %); via power jumper contacts

Current carrying capacity (power jumper contacts)10 A

Number of outgoing power jumper contacts3

Isolation500 V system/field

StandardEN 50170

Connection technology: communication/fieldbusPROFIBUS: 1 x D-sub 9 socket

Connection technology: system supply2 x CAGE CLAMP ®

Connection technology: field supply6 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeSystem/field supply

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Connection technology: device configuration1 x Male connector; 4-pole

Width50,5 mm / 1.988 inches

Height100 mm / 3.937 inches

Depth71,1 mm / 2.799 inches

Depth from upper-edge of DIN-rail63,9 mm / 2.516 inches

Mounting typeDIN-35 rail

Colorсветло сив

Housing materialPolycarbonate; polyamide 6.6

Fire load2,8 MJ

Weight186,9 g

Conformity markingCE

Mounting typeDIN-35 rail

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-25 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitudeбез занижаване на работните характеристики на температурата: 0 … 2000 m; със занижаване на работните характеристики на температурата: 2000 … 5000 m (0,5 К/100 m); 5000 m (макс.)

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistance4g per IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2, морски приложения

EMC emission of interferenceпо EN 61000-6-4, морски приложения

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454527075

Customs tariff number85371091990

UNSPSC32151705

eCl@ss 10.027-24-26-07

eCl@ss 9.027-24-26-07

ETIM 9.0EC000236

ETIM 10.0EC000236

ECCNNO US CLASSIFICATION

CAS-No.12060-00-3 1303-86-2 1317-36-8 25550-51-0 7439-92-1 79-94-7

REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol 4-Methyl-1,2-cyclohexanedicarboxylic anhydride Diboron trioxide Lead Lead monoxide Lead titanium oxide (PbTiO3)

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II

SCIP notification number (Bulgaria)9a69ea66-5706-4a91-a6f4-1740c22f2b9c

SCIP notification number (Czech Republic)402117a9-b5d3-43c8-80e1-893dad99944a
