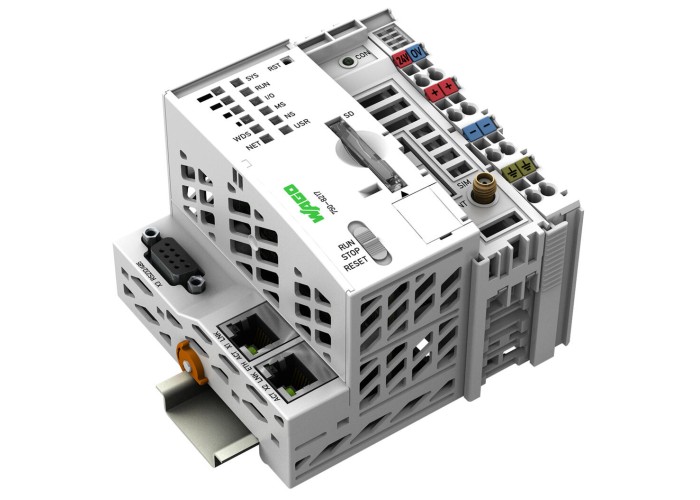

Контролер PFC200, 2-ра генерация, 2xETHERNET, RS-232/-485, Мобилен радиомодул 4G, ЕС версия, Външна температура, Wago 750-8217/025-000

Детайлна информация

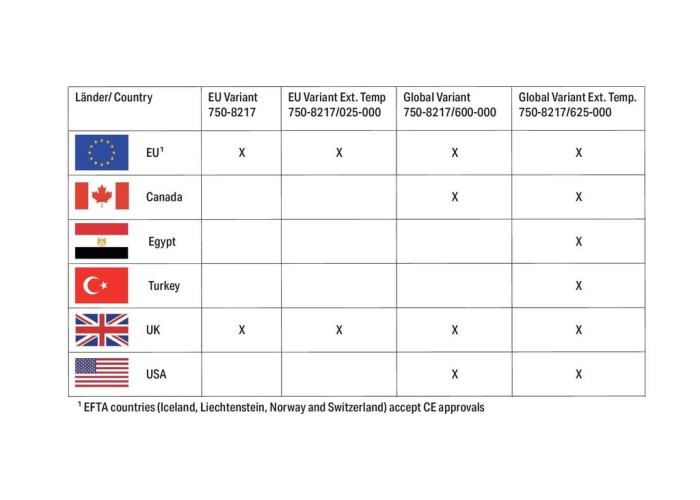

NoteCountry approvals: All EU countries (approvals for other countries upon request)

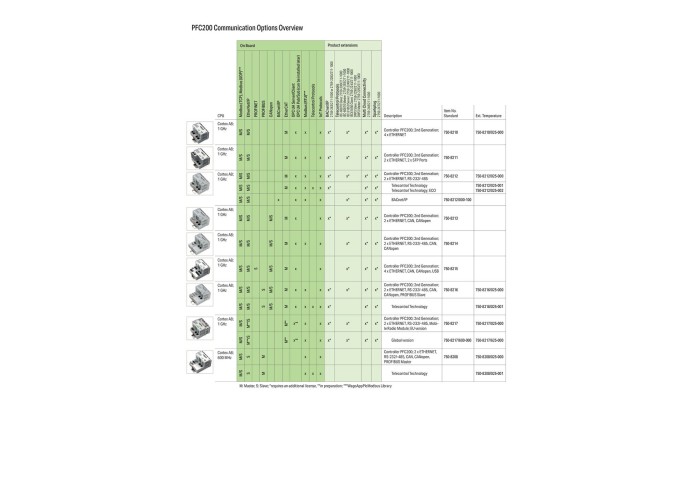

CommunicationsИнтерфейс RS-485 Modbus (TCP, UDP) ETHERNET EtherNet/IP TM Adapter (slave), library for e! RUNTIME Modbus RTU RS-232 serial interface RS-485 interface MQTT BACnet/IP, requires an additional license EtherCAT® Master ( requires an additional license ) Telecontrol protocols, requires an additional license

ETHERNET protocolsDHCP DNS NTP FTP FTPS SNMP HTTP HTTPS SSH

Telecontrol protocolsIEC 60870 (additional license as slave or master) IEC 61850 (additional license as Client or Server) DNP3 (additional license as Slave or Master)

VisualizationУеб визуализация Web-Visu

Operating systemReal-time Linux (with PREEMPT_RT patch)

CPUCortex A8; 1 GHz

Programming languages per IEC 61131-3Непрекъсната функционална диаграма (CFC) Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)

Programming environmentCODESYS V3.5 e! COCKPIT (based on CODESYS V3)

Configuration optionsCODESYS V3 CODESYS Library e! COCKPIT WAGO-I/O- CHECK Web-Based Management e! RUNTIME library CODESYS Library

Security encryptionOpenVPN, IPsec, firewall

ServicesSMS (bidirectional) GPRS connection to Internet

Radio technologyGSM/UMTS/LTE

Frequency bandGSM dual band (B3; B8); E-UTRA bands (B1; B3; B5; B7; B8; B20; B38; B40; B41)

Transmission rate10/100 Mbit/s

Transmission medium (communication/fieldbus)Усукана двойка S-UTP; 100 Ω; кат. 5; максимална дължина на кабела 100 m

Main memory (RAM)512 MB

Internal memory (flash)4096 MB

Non-volatile hardware memory128 kbyte

Program memory32 MB

Data memory128 MB

Non-volatile software memory128, kbyte

Type of memory cardSD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)

Memory Card SlotМеханизъм с двойно натискане, капак (херметичен)

SIM card typeMini-SIM; Temperature range: −20 … +85 °C

SIM card slotPush-push mechanism

Number of modules per node (max.)250

Number of modules without a bus extension (max.)64

Input and output process image (internal) max.1000 words/1000 words

Input and output process image (Modbus®) max.CODESYS V3: 32000 words/32000 words

Drift – system clock (25 °C)20 ppm

Drift – Real Time Clock (25 °C)3 ppm

RTC backup time (25 °C)30 Tage

IndicatorsLED (SYS, RUN, I/O, MS, NS, USR, S1 … S4, WDS, NET) red/green/orange: system status, program, local data bus, status programmable by user (can be used via CODESYS library), signal strength S1 … S4, data service status; LED (CON, A, B) green: mobile network status, system power supply status, field supply status

Supply voltage (system)24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP ® connection)

Input current (typ.) at nominal load (24 V)550 mA

Total current (system supply)700 mA

Supply voltage (field)24 VDC (-25 … +30 %); via power jumper contacts

Current carrying capacity (power jumper contacts)10 A

Number of outgoing power jumper contacts3

Isolation500 V system/field

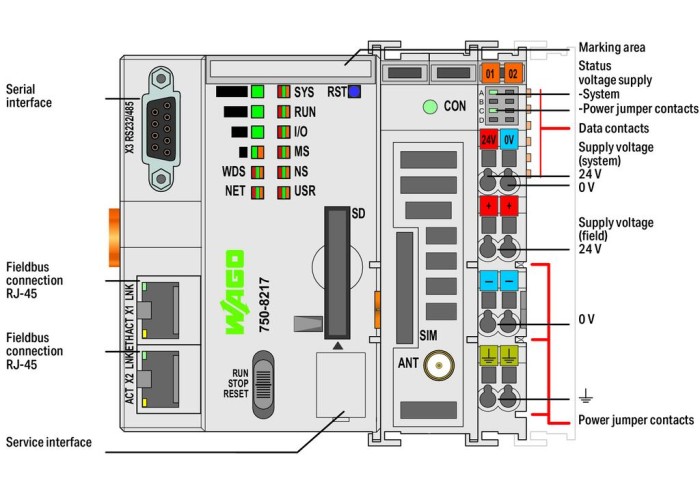

Connection technology: communication/fieldbusModbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; Интерфейс RS-485: 1 x D-sub 9 socket

Connection technology: system supply2 x CAGE CLAMP ®

Connection technology: field supply6 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeSystem/field supply

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Connection technology: antenna1 x SMA socket

Connection technology: device configuration1 x Male connector; 4-pole

Width102,5 mm / 4.035 inches

Height100 mm / 3.937 inches

Depth71,9 mm / 2.831 inches

Depth from upper-edge of DIN-rail64,7 mm / 2.547 inches

Mounting typeDIN-35 rail

Housing materialPolycarbonate; polyamide 6.6

Fire load3,563 MJ

Weight302,4 g

Conformity markingCE

Mounting typeDIN-35 rail

Ambient temperature (operation)-20 … +60 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitudeбез занижаване на работните характеристики на температурата: 0 … 2000 m; със занижаване на работните характеристики на температурата: 2000 … 5000 m (0,5 К/100 m); 5000 m (макс.)

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Relative humidity (with condensation)Краткотрайна кондензация съгласно клас 3K6/IEC EN 60721-3-3 и E-DIN 40046-721-3, като се отчита температурен диапазон от -20 до +60 °C (с изключение на валежи, предизвикани от вятър, образуване на вода и лед)

Vibration resistanceпо IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2, морски приложения

EMC emission of interferenceпо EN 61000-6-3, морски приложения

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4055143984331

Customs tariff number85371091990

UNSPSC32151705

ETIM 9.0EC000236

ETIM 10.0EC000236

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 693-98-1 7439-92-1 79-94-7 1303-86-2 1317-36-8 693-98-1 7439-92-1 79-94-7

REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol 2-methylimidazole Diboron trioxide Lead Lead monoxide Perfluorobutane sulfonic acid (PFBS) and its salts 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol 2-methylimidazole Diboron trioxide Lead Lead monoxide Perfluorobutane sulfonic acid (PFBS) and its salts

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II 6(c) 7(a) 7(c)-I 7(c)-II
