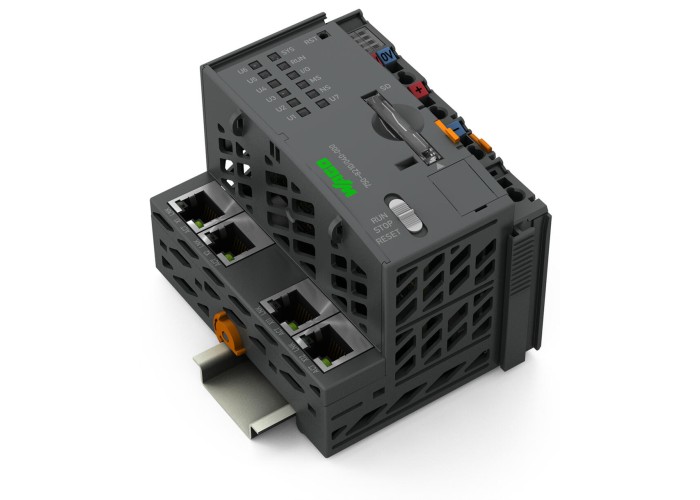

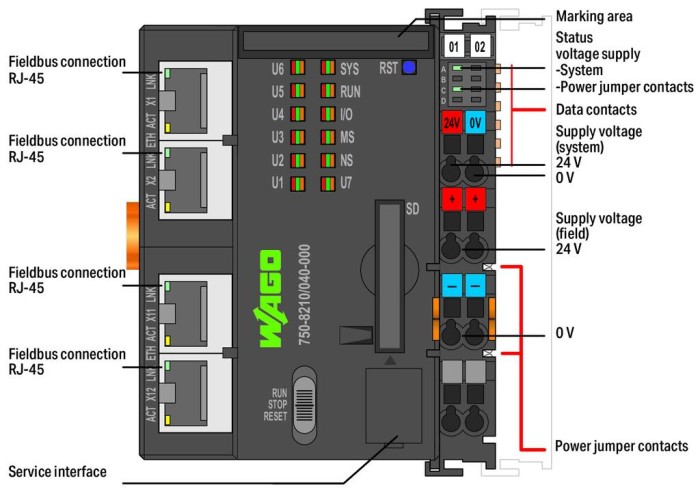

Контролер PFC200, 2-ра генерация, 4xETHERNET, Extreme, Wago 750-8210/040-000

Детайлна информация

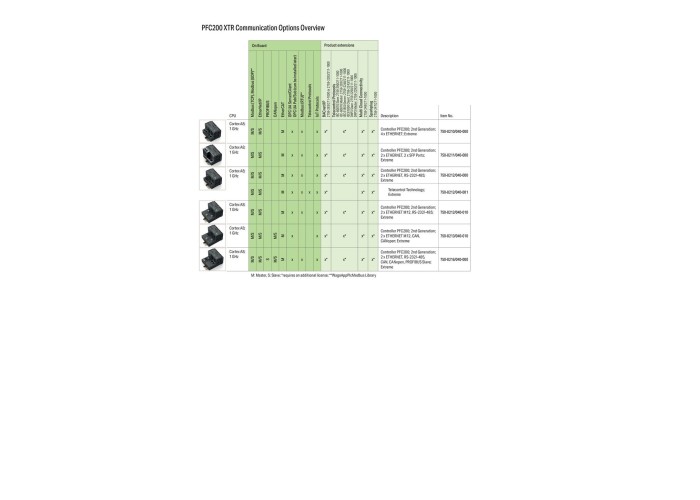

CommunicationsModbus TCP master/slave Modbus (UDP), WagoAppPlcModbus Library Modbus (RTU), WagoAppPlcModbus Library ETHERNET EtherNet/IP TM Adapter (slave) EtherNet/IP TM Scanner EtherCAT® Master OPC UA Server/Client OPC UA Pub/Sub (can be installed later) MQTT BACnet/IP, requires an additional license Telecontrol protocols, requires an additional license

ETHERNET protocolsDHCP DNS NTP FTP FTPS SNMP HTTP HTTPS SSH

Telecontrol protocolsIEC 60870 (additional license as slave or master) IEC 61850 (additional license as Client or Server) DNP3 (additional license as Slave or Master)

VisualizationУеб визуализация Web-Visu

Operating systemReal-time Linux (with PREEMPT_RT patch)

CPUCortex A8; 1 GHz

Programming languages per IEC 61131-3Непрекъсната функционална диаграма (CFC) Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)

Programming environmentCODESYS V3.5, Firmware Release 23 or higher e! COCKPIT (based on CODESYS V3) up to Firmware Release 22 WAGO-I/O- PRO V2.3 (based on CODESYS V2.3), up to Firmware Release 22

Configuration optionsCODESYS V3 e! COCKPIT WAGO-I/O- CHECK Web-Based Management e! RUNTIME library CODESYS Library

Transmission rateETHERNET: 10/100 Mbit/s

Transmission medium (communication/fieldbus)ETHERNET: Усукана двойка S-UTP; 100 Ω; кат. 5; максимална дължина на кабела 100 m

Main memory (RAM)512 MB

Internal memory (flash)4096 MB

Non-volatile hardware memory128 kbyte

Program memoryCODESYS V2: 16 MB; CODESYS V3: 32 MB

Data memoryCODESYS V2: 64 MB; CODESYS V3: 128 MB

Non-volatile software memory128 kbyte

Non-volatile software memory128, kbyte

Type of memory cardSD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)

Memory Card SlotМеханизъм с двойно натискане, капак (херметичен)

Number of modules per node (max.)64

Number of modules without a bus extension (max.)64

Input and output process image (internal) max.1000 words/1000 words

Input and output process image (Modbus®) max.CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words

Drift – system clock (25 °C)20 ppm

Drift – Real Time Clock (25 °C)3 ppm

RTC backup time (25 °C)30 Tage

IndicatorsLED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, C) green: Status of system power supply, field supply

DeratingDerating (supply voltage): Ambient temperatures under laboratory conditions: (-25 … +30 %); for -40 … +55 °C: 24 V (-25 … +20 %); for +55 … +70 °C: 24 V (-25 … +10 %); Lower limit in all temperature ranges: -27.5 % (including 15 % residual ripple)

Supply voltage (system)24 VDC; via pluggable connector (CAGE CLAMP® connection); Derating must be observed!

Input current (typ.) at nominal load (24 V)500 mA

Total current (system supply)1 700 mA

Supply voltage (field)24 VDC; Power supply via pluggable connector (CAGE CLAMP® connection); Transmission via power jumper contacts; Derating must be observed!

Current carrying capacity (power jumper contacts)10 A

Number of outgoing power jumper contacts2

Rated impulse withstand voltage1 kV

Connection technology: communication/fieldbusModbus (TCP, UDP): 4 x RJ-45

Connection technology: system supply2 x CAGE CLAMP ®

Connection technology: field supply4 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeSystem/field supply

Solid conductor0,25 … 2,5 mm² / 24 … 14 AWG

Fine-stranded conductor0,25 … 2,5 mm² / 24 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Connection technology: device configuration1 x Male connector; 4-pole

Width78,6 mm / 3.094 inches

Height100 mm / 3.937 inches

Depth71,9 mm / 2.831 inches

Depth from upper-edge of DIN-rail64,7 mm / 2.547 inches

Mounting typeDIN-35 rail

Housing materialPolycarbonate; polyamide 6.6

Fire load1,871 MJ

Weight226,3 g

Conformity markingCE

Mounting typeDIN-35 rail

Ambient temperature (operation)-40 … +70 °C

Ambient temperature (storage)-40 … +85 °C

Ambient temperature (installation)-20 … +70 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitudeбез занижаване на работните характеристики на температурата: 0 … 2000 m; със занижаване на работните характеристики на температурата: 2000 … 5000 m (0,5 К/100 m); 5000 m (макс.)

Mounting positionHorizontal left, horizontal up, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Relative humidity (with condensation)Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Vibration resistanceпо IEC 60068-2-6 (ускорение: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373

Shock resistanceпо IEC 60068-2-27 (15g/11 ms/полусинусоидален/1000 удара; 25g/6 ms/1000 удара), EN 50155, EN 61373

EMC immunity to interferenceпо EN 61000-6-1, -2; EN 61131-2; морски приложения; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994

EMC emission of interferenceпо EN 61000-6-3, -4, EN 61131-2, EN 60255-26, морски приложения, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4066966054019

Customs tariff number85371091990

UNSPSC32151705

ETIM 9.0EC000236

ETIM 10.0EC000236

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 693-98-1 7439-92-1 79-94-7

REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol 2-methylimidazole Diboron trioxide Lead Lead monoxide Perfluorobutane sulfonic acid (PFBS) and its salts

RoHS Compliance StatusCompliant,No Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II

SCIP notification number (Austria)ad05bb10-3826-40ee-82c0-756ee1ee428a
