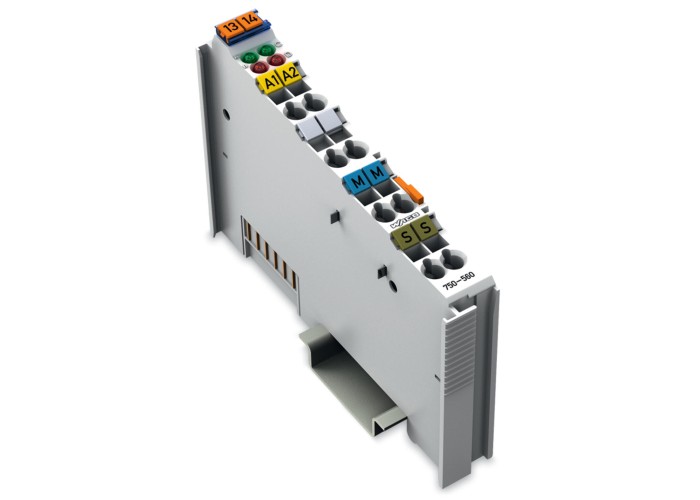

2-канален аналогов изход, 0...10 VDC, 10 bits, 100 mW/24 V, Wago 750-560

Детайлна информация

Number of analog outputs2

Total number of channels (module)2

Signal typeVoltage

Signal type (voltage)0 … 10 VDC

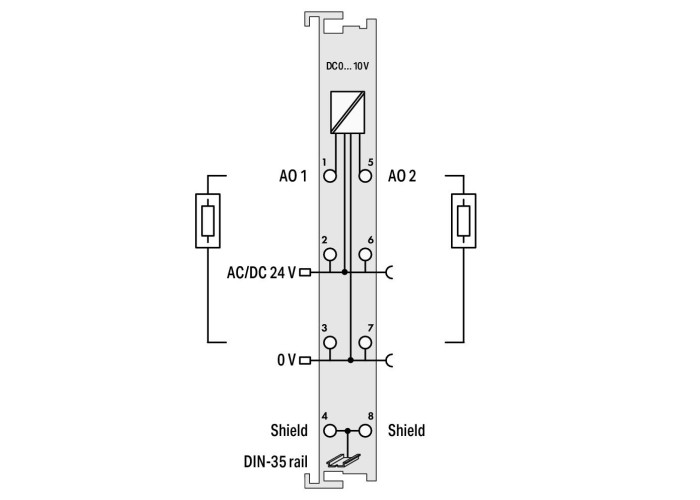

Actuator connection2 x (2-wire)

Resolution [bit]10 Bit

Data width2 x 16 бита данни; 2 x 8 бита управление/състояние (по избор)

Load impedance (voltage output)≥ 1 kΩ

Conversion time (typ.)10 ms

Measurement error (reference temperature)25 °C

Measurement error, deviation (max.) from the upper-range value0,2 %

Temperature error (max.) of the upper-range value0,02 %/K

Output error, reference temperature25, °C

Output error, deviation (max.) of the upper-range value0.2 %

Temperature error (max.) of the output range value0.02 %/K

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)16 mA

Supply voltage (field)24 VAC/DC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Isolation500 V system/field

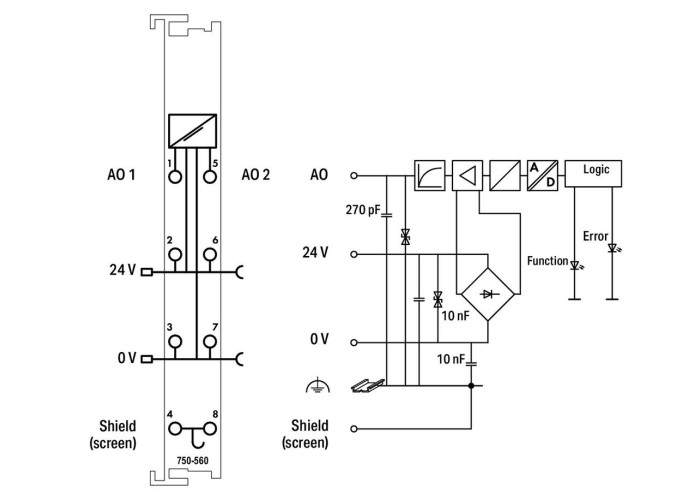

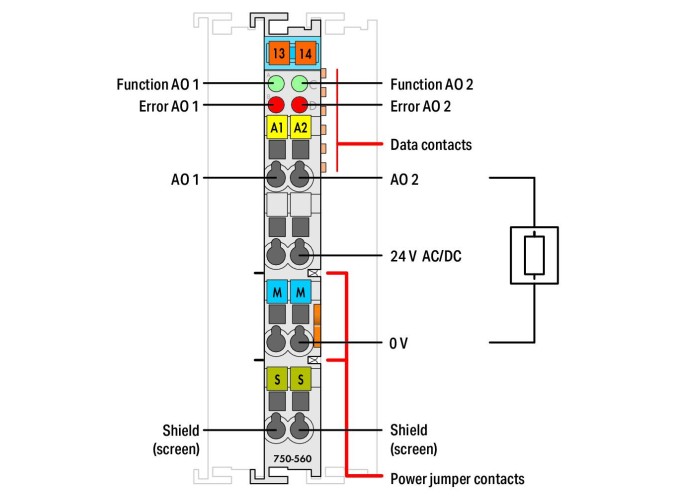

IndicatorsLED (A, C) green: Function AO 1, AO 2; LED (B, D) red: Error AO 1, AO 2

Number of incoming power jumper contacts2

Number of outgoing power jumper contacts2

Connection technology: I/O6 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeInputs/outputs

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth69,8 mm / 2.748 inches

Depth from upper-edge of DIN-rail62,6 mm / 2.465 inches

Mounting typeDIN-35 rail

Pluggable connectorфиксиран

Colorсветло сив

Housing materialPolycarbonate; polyamide 6.6

Fire load1,25 MJ

Weight52,1 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistanceпо IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2

EMC emission of interferenceпо EN 61000-6-4

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454501327

Customs tariff number85389099990

UNSPSC32101505

eCl@ss 10.027-24-26-01

eCl@ss 9.027-24-26-01

ETIM 9.0EC001596

ETIM 10.0EC001596

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 7439-92-1

REACH Candidate List SubstanceDiboron trioxide Lead Lead monoxide

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II
