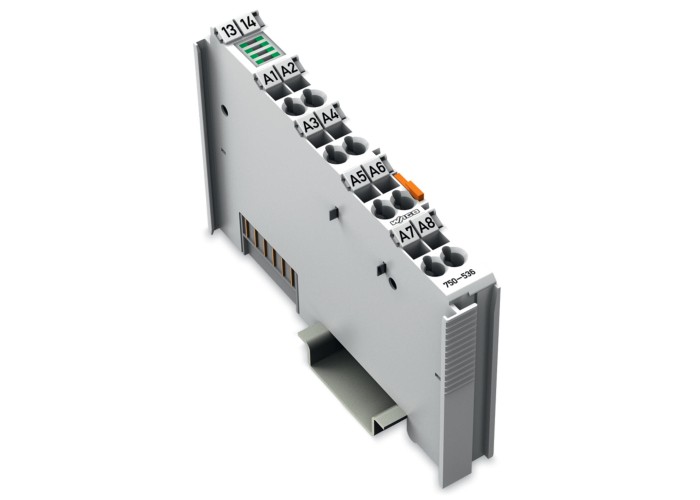

8-канален цифров изход, 24 VDC, 0,5 A, Комутиране по нула, Wago 750-536

Детайлна информация

Number of digital outputs8

Total number of channels (module)8

Signal typeDigital

Signal type (voltage)24 VDC

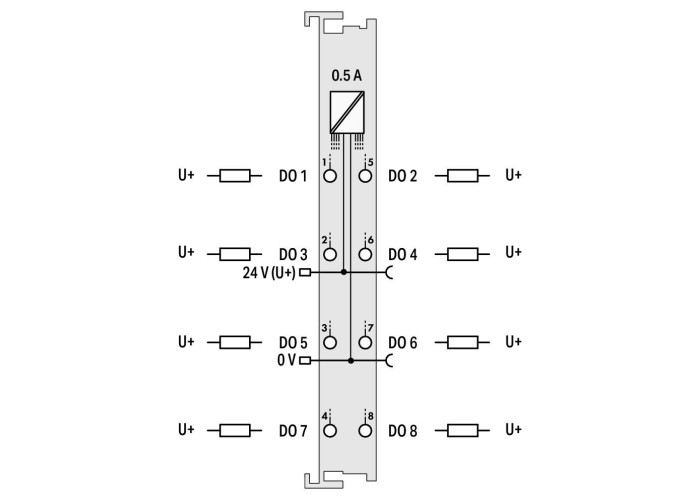

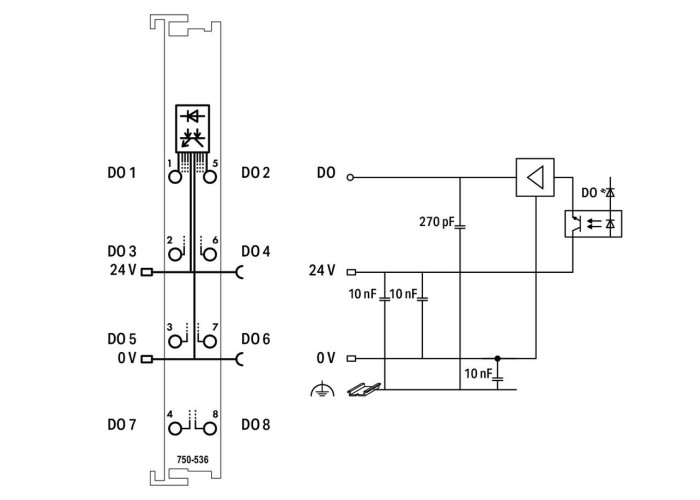

Actuator connection8 x (1-wire)

Output characteristicкомутиране по нула

Output current per channel0,5 A

Output currentзащита от късо съединение

Load typeResistive, inductive, lamp load

Reverse voltage protectionYes

Switching frequency (max.)2 kHz

Inductive load switch-off energy dissipation (max.)0,5 J

Output data width (internal) max.8 Bit

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)25 mA

Supply voltage (field)24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Current consumption, field supply (module with no external load)12 mA

Isolation500 V system/field

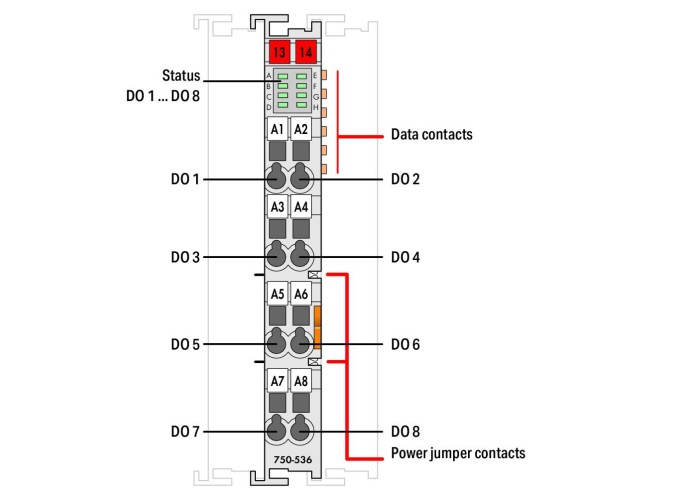

IndicatorsLED (A-H) green: Status DO 1 … DO 8

Number of incoming power jumper contacts2

Number of outgoing power jumper contacts2

Current carrying capacity (power jumper contacts)10 A

Connection technology: I/O8 x CAGE CLAMP (wyjścia)

Connectable conductor materialsCopper

Connection typeOutput

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth67,8 mm / 2.669 inches

Depth from upper-edge of DIN-rail60,6 mm / 2.386 inches

Mounting typeDIN-35 rail

Pluggable connectorфиксиран

Colorсветло сив

Housing materialPolycarbonate; polyamide 6.6

Fire load1,124 MJ

Weight48,7 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-40 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistance4g per IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2, морски приложения

EMC emission of interferenceпо EN 61000-6-3, морски приложения

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454826406

Customs tariff number85371098990

UNSPSC32151705

eCl@ss 10.027-24-26-04

eCl@ss 9.027-24-26-04

ETIM 9.0EC001599

ETIM 10.0EC001599

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 7439-92-1 75980-60-8

REACH Candidate List SubstanceDiboron trioxide Lead Lead monoxide Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II

SCIP notification number (Bulgaria)0bab5430-8a60-4608-afad-e1f882bea579

SCIP notification number (Czech Republic)6098e7b4-3879-4882-9215-11eb81fce5d3
