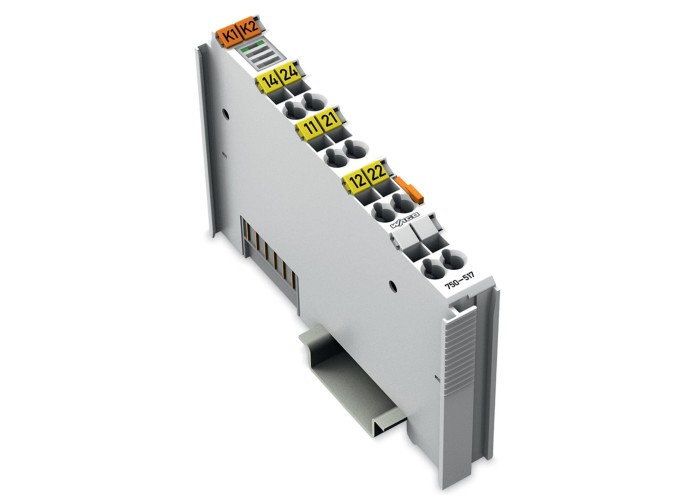

2-канален релеен изход, AC 250 V, 1 A, Безпотенциален, 2 превключващи контакта, Wago 750-517

Детайлна информация

Number of digital outputs2

Total number of channels (module)2

Signal typeDigital

Actuator connection2 x (1-wire)

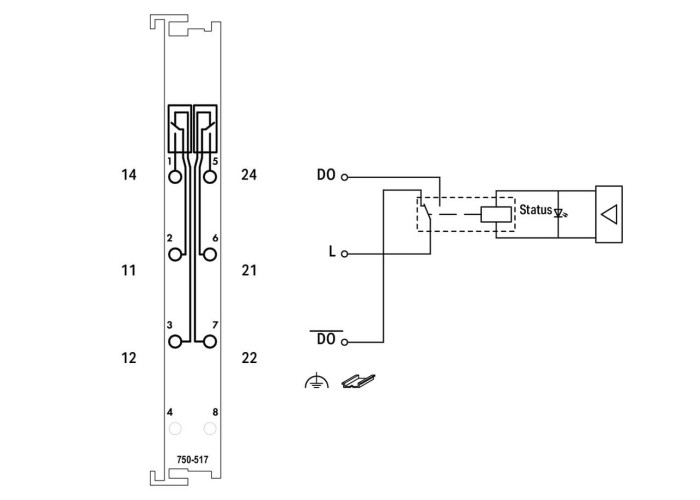

Output circuit design2 changeover contacts

Реле

Output characteristicбезпотенциален

Pull-in time (max.)8ms

Drop-out time (max.)4ms

Switching frequency (max.)0,1 Hz; Nominal load

Switching voltage (max.)250 VAC, 300 VDC

Switching current (max.)1A

Switching current (note)1 A при 250 VAC и 40 VDC; 0.15 A при 300 VDC

Switching voltage (min.)12V

Switching current (min.)100mA

Electrical switching operations (min.) (at max. resistive load)1 x 10⁶ switching operations

Mechanical switching operations (min.) (at max. resistive load)5 x 10⁶ switching operations

Output data width (internal) max.2Bit

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)90mA

Isolation1500 V (system/field)

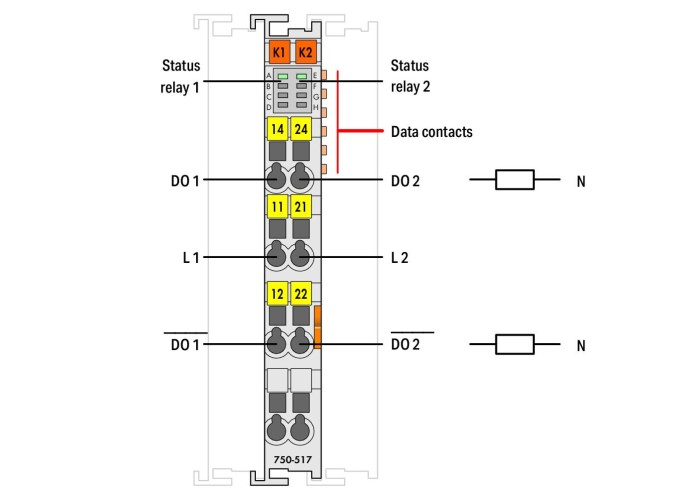

IndicatorsLED (A, E) green: Status relay 1, relay 2

Connection technology: inputs/outputs6 x CAGE CLAMP (wyjścia)

Connectable conductor materialsCopper

Connection typeOutput

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width12 mm / 0.472 inches

Height100 mm / 3.937 inches

Depth67,8 mm / 2.669 inches

Depth from upper-edge of DIN-rail60,6 mm / 2.386 inches
