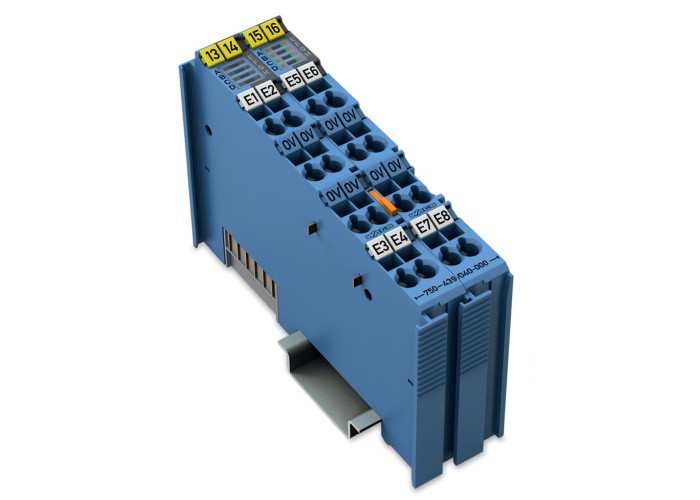

8-канален цифров вход, NAMUR, Искробезопасен, Extreme, Wago 750-439/040-000

Детайлна информация

NoteThe digital input module must only be operated via 24 VDC Ex i XTR power supply (750-606/040-000)! General information on explosion protection, including installation regulations, can be found in the WAGO I/O System 750 XTR manuals!

Item description8-Channel Digital Input; NAMUR; Intrinsically safe

Number of digital inputs8

Total number of channels (module)8

Signal typeNAMUR

Signal current (0) NAMUR≤1.2 mA

Signal current (1) NAMUR≥2.1 mA

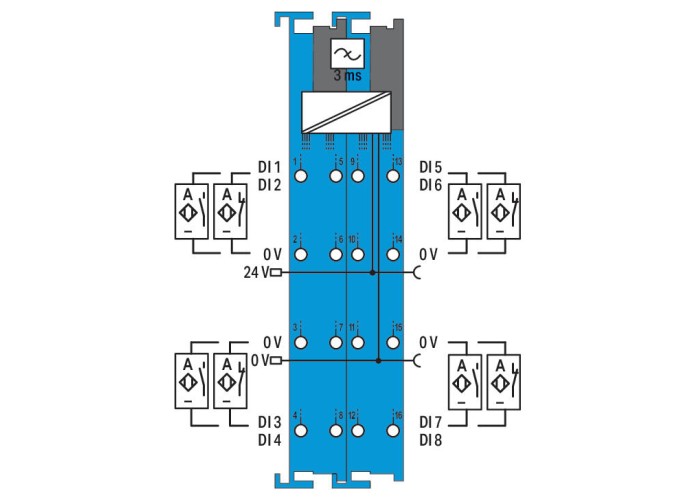

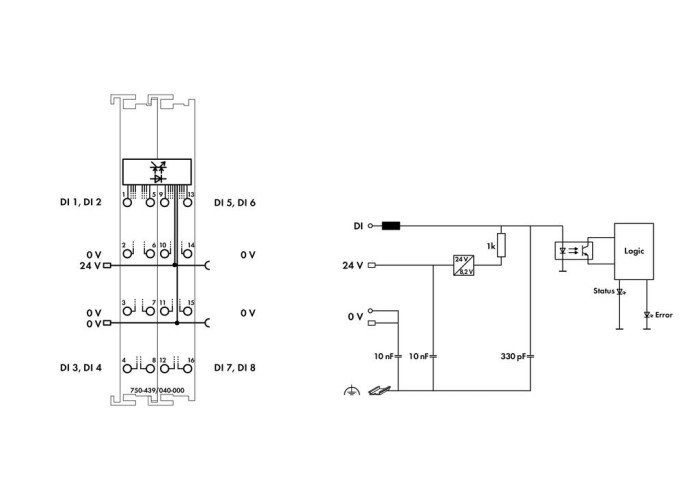

Sensor connection8 x (2-wire)

Input characteristicкомутиране по фаза

Input filter3 ms

Sensor supply8.2 VDC

Input pulse separation≥3 ms

Open-circuit voltage8,2 V

Short-circuit current≤ 8.2 mA (± 0.2 mA)

Switching hysteresis0,2 mA

Input resistance1 000 Ω

Intrinsically safe Ex iYes

DiagnosticsShort circuit, wire break

Input data width (internal) max.16 Bit

Output data width (internal) max.16 Bit

Supply voltage (system)5 VDC; via data contacts

Current consumption (5 V system supply)56 mA

Supply voltage (field)24 VDC; (Ex i XTR power supply: U o = max. 26.8 ); via power jumper contacts (supply via blade contact; distribution via spring contact)

Current consumption, field supply (module with no external load)11 mA

Power consumption P max.1,2 W

Power loss P l0,54 W

Isolation300 VAC system/supply

Rated impulse withstand voltage1 kV; Rated surge voltage between intrinsically safe and non-intrinsically safe circuits: 1.5 kV (EN 60079-11)

Number of incoming power jumper contacts2

Number of outgoing power jumper contacts2

Current carrying capacity (power jumper contacts)1 A

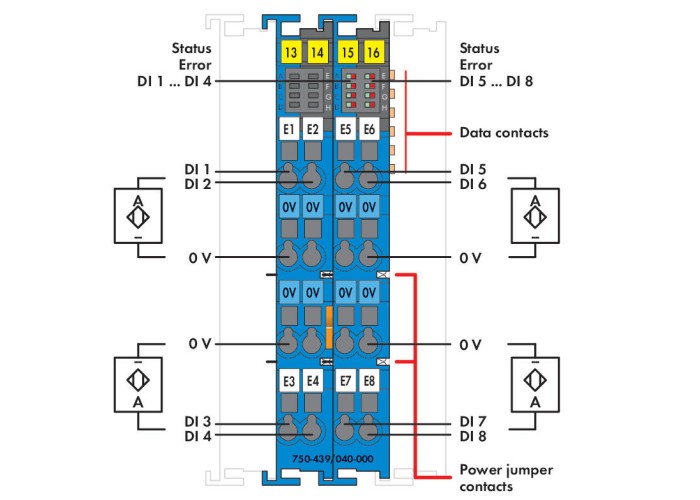

IndicatorsLED (A-H) green/red: Status/error DI 1 … DI 8

IdentificationATEX: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I IECEx/INMETRO: Ex ec [ia Ga] IIC T4 Gc; [Ex ia Da] IIIC; [Ex ia Ma] I cULus (Devision classified): Class I, Div. 2, Group A B C D, T4

Ex standardEN/IEC 60079-0, -7, -11

Safety-relevant data (circuit)U o = 11,76 V; I o = 12,48 mA; P o = 36,67 mW; линейна крива

Reactances Ex ia IICL o = 100 mH; C o = 1,5 µF

Reactances Ex ia IIBL o = 100 mH; C o = 9,9 µF

Reactances Ex ia IIAL o = 100 mH; C o = 39 µF

Reactances Ex ia IL o = 100 mH; C o = 38 µF

Reactances (note)Реактивни съпротивления без отчитане на едновременното наличие на капацитет (C o ) и индуктивност (L o )

Connection technology: I/O16 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeInputs/outputs

Solid conductor0,25 … 2,5 mm² / 24 … 14 AWG

Fine-stranded conductor0,25 … 2,5 mm² / 24 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Width24 mm / 0.945 inches

Height100 mm / 3.937 inches

Depth67,8 mm / 2.669 inches

Depth from upper-edge of DIN-rail60,6 mm / 2.386 inches

Mounting typeDIN-35 rail

Colorсин

Housing materialPolycarbonate; polyamide 6.6

Fire load1,584 MJ

Weight93,8 g

Conformity markingCE

Ambient temperature (operation)-40 … +70 °C

Ambient temperature (storage)-40 … +85 °C

Ambient temperature (installation)-20 … +70 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitudeбез занижаване на работните характеристики на температурата: 0 … 2000 m; със занижаване на работните характеристики на температурата: 2000 … 5000 m (0,5 К/100 m); 5000 m (макс.)

Mounting positionHorizontal left, horizontal up, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Relative humidity (with condensation)Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)

Vibration resistanceпо IEC 60068-2-6 (ускорение: 5g), EN 60870-2-2, IEC 60721-3-1, -3

Shock resistanceпо IEC 60068-2-27 (15g/11 ms/полусинусоидален/1,000 удара; 25g/6 ms/1000 удара), EN 61373

EMC immunity to interferenceпо EN 61000-6-1, -2, EN 61131-2, морски приложения, EN 60255-26, EN 60870-2-1, EN 61850-3, IEC 61000-6-5, IEEE 1613, VDEW: 1994

EMC emission of interferenceпо EN 61000-6-3, -4, EN 61131-2, EN 60255-26, морски приложения, EN 60870-2-1, EN 61850-3

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4055143649438

Customs tariff number85176200000

UNSPSC32151705

eCl@ss 10.027-24-26-04

eCl@ss 9.027-24-26-04

ETIM 9.0EC001599

ETIM 10.0EC001599

ECCNNO US CLASSIFICATION

CAS-No.1303-86-2 1317-36-8 7439-92-1

REACH Candidate List SubstanceDiboron trioxide Lead Lead monoxide Perfluorobutane sulfonic acid (PFBS) and its salts

RoHS Compliance StatusCompliant,With Exemption

RoHS Exemption6(c) 7(a) 7(c)-I 7(c)-II
