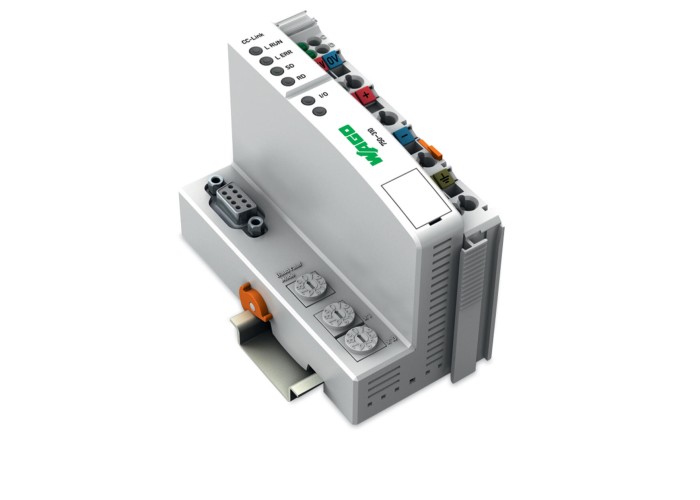

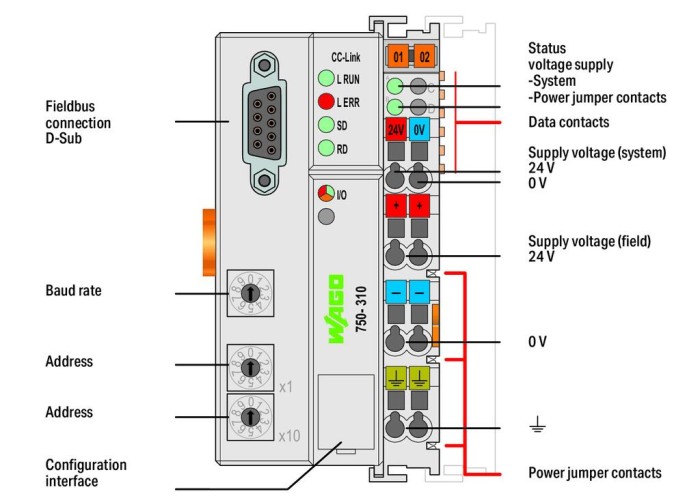

Fieldbus куплер CC-Link, Wago 750-310

Детайлна информация

CommunicationsCC-Link

Number of fieldbus nodes on master (max.)64

Transmission rate156 kBd … 10 MBd

Bus segment length (max.)1200 m

Transmission medium (communication/fieldbus)Shielded Cu cable 2 / 3 x 0.5 mm²

Station addresses4/1 … 4

Number of modules per node (max.)64

Number of modules without a bus extension (max.)64

Input and output process image (fieldbus) max.48 bytes/48 bytes

Input process image (note)14-byte digital, 2-byte system, 32-byte analog

Output process image (note)14-byte digital, 2-byte system, 32-byte analog

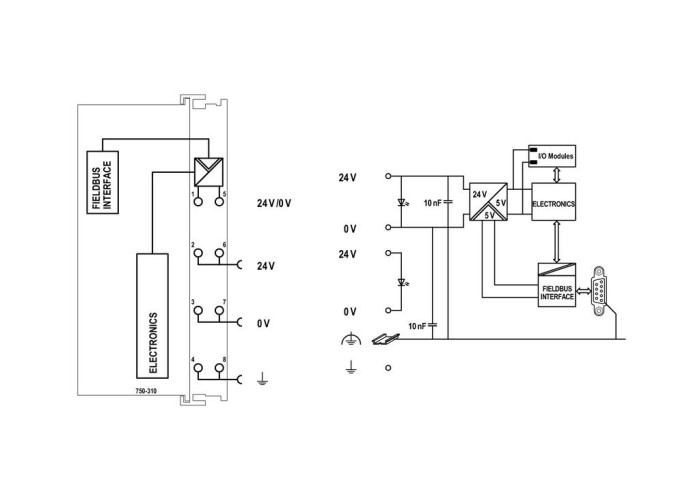

Supply voltage (system)24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP ® connection)

Current consumption (5 V system supply)300 mA

Total current (system supply)1 700 mA

Supply voltage (field)24 VDC (-25 … +30 %); via power jumper contacts

Input current (typ.) at nominal load (24 V)500 mA

Power supply efficiency (typ.) at nominal load (24 V)87 %

Isolation500 V system/field

Number of outgoing power jumper contacts3

Current carrying capacity (power jumper contacts)10 A

Connection technology: communication/fieldbusCC-Link: 1 x D-sub 9 socket

Connection technology: field supply6 x CAGE CLAMP ®

Connection technology: system supply2 x CAGE CLAMP ®

Connectable conductor materialsCopper

Connection typeSystem/field supply

Solid conductor0,08 … 2,5 mm² / 28 … 14 AWG

Fine-stranded conductor0,08 … 2,5 mm² / 28 … 14 AWG

Strip length8 … 9 mm / 0.31 … 0.35 inches

Connection technology: device configuration1 x Male connector; 4-pole

Width50,5 mm / 1.988 inches

Height100 mm / 3.937 inches

Depth71,1 mm / 2.799 inches

Depth from upper-edge of DIN-rail63,9 mm / 2.516 inches

Mounting typeDIN-35 rail

Colorсветло сив

Housing materialPolycarbonate; polyamide 6.6

Fire load2,34 MJ

Weight209,4 g

Conformity markingCE

Ambient temperature (operation)0 … +55 °C

Ambient temperature (storage)-25 … +85 °C

Protection typeIP20

Pollution degree2 per IEC 61131-2

Operating altitude0 … 2000 m / 0 … 6562 ft

Mounting positionHorizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)95 %

Vibration resistanceпо IEC 60068-2-6

Shock resistance15g per IEC 60068-2-27

EMC immunity to interferenceпо EN 61000-6-2

EMC emission of interferenceпо EN 61000-6-4

Exposure to pollutantsсъгласно IEC 60068-2-42 и IEC 60068-2-43

Permissible H 2 S contaminant concentration at a relative humidity 75 %10 ppm

Permissible SO 2 contaminant concentration at a relative humidity 75 %25 ppm

Product Group15 (I/O System)

PU (SPU)1 бр.

Packaging typeКутия

Country of originDE

GTIN4045454526771

Customs tariff number85176200000

End of Sale2026-06-01

End of Production2026-09-01

End of Delivery2026-10-01

End of Service and Repair2028-10-01

UNSPSC32151705

eCl@ss 10.027-24-26-07

eCl@ss 9.027-24-26-07

ETIM 9.0EC001603

ETIM 10.0EC001603

ECCNNO US CLASSIFICATION
